Radio Frequency (RF) printed circuit boards form the backbone of modern wireless communication systems. From the smartphones in our pockets to the satellite ground stations that connect remote regions, RF PCBs enable the transmission and reception of electromagnetic signals across an ever-expanding spectrum of frequencies. This comprehensive guide explores the full collection of RF PCB types — from Power Amplifiers (PA) and Low Noise Amplifiers (LNA) to sophisticated Front-End Modules (FEM), microwave assemblies, millimeter-wave circuits, 5G infrastructure, WiFi systems, Software-Defined Radio (SDR) platforms, and integrated modules.

1. Power Amplifier (PA) PCBs: The Muscle of RF Systems

Power amplifier PCBs represent one of the most demanding disciplines in RF design. A PA's fundamental role is to boost a low-power RF signal to a level sufficient for transmission over the desired distance, whether that means a few meters for Bluetooth or tens of kilometers for cellular base stations. The PCB substrate acts not merely as a mechanical carrier but as an integral part of the RF circuit, directly influencing impedance matching, thermal management, and signal integrity.

1.1 Thermal Management Challenges

PA efficiency typically ranges from 30% to 60%, meaning that a 100-watt amplifier may dissipate 40 to 70 watts as heat directly into the PCB. This thermal load demands specialized substrate materials with high thermal conductivity. Rogers RO4350B and RO4003C laminates, with their ceramic-filled hydrocarbon formulations, offer thermal conductivity of 0.6–0.7 W/m·K — significantly better than standard FR-4 at 0.3 W/m·K. For higher-power applications, metal-core PCBs (MCPCB) with aluminum or copper bases provide thermal conductivity exceeding 2.0 W/m·K, while direct-bonded copper (DBC) on ceramic substrates can reach 24–170 W/m·K.

1.2 Impedance Control and Matching Networks

Every millimeter of trace on a PA PCB matters. The output matching network must transform the typically low impedance of the power transistor (often 2–10 ohms) to the standard 50-ohm system impedance with minimal insertion loss. This requires precision-controlled trace widths, exact substrate thickness tolerances, and careful via placement. A deviation of just 0.05 mm in trace width on a 20-mil Rogers substrate can shift the characteristic impedance by 2–3 ohms — enough to degrade PA efficiency by several percentage points.

1.3 Doherty and Envelope Tracking Architectures

Modern PA PCBs increasingly implement advanced efficiency-enhancement architectures. Doherty amplifiers, which combine a main (Class AB) amplifier with an auxiliary (Class C) amplifier through an impedance-inverting quarter-wave transformer, require precise phase alignment across the combining network. The PCB layout must maintain exact electrical lengths between the two amplifier paths, often within ±2 degrees of phase at the operating frequency. Envelope Tracking (ET) PAs add further complexity by requiring the drain/collector supply voltage to track the instantaneous envelope of the modulated signal, demanding ultra-low-inductance power distribution networks on the PCB.

2. Low Noise Amplifier (LNA) PCBs: The Ears of RF Systems

If the PA provides the muscle, the LNA provides the ears. Low Noise Amplifier PCBs must amplify extremely weak signals — often below -100 dBm — while adding the absolute minimum of noise. The noise figure (NF) of the first LNA in a receiver chain essentially sets the noise floor of the entire system, making LNA PCB design a discipline where every fraction of a decibel counts.

2.1 Noise Figure Optimization Through PCB Layout

LNA PCBs demand obsessive attention to grounding and isolation. A continuous, unbroken ground plane directly beneath the LNA is non-negotiable. Any gap or slot in the ground plane creates a discontinuity that can radiate or couple noise into the sensitive input. Via stitching along the perimeter of the LNA section — with vias spaced no more than λ/10 apart at the highest operating frequency — creates a quasi-coaxial shielding effect that suppresses substrate-mode coupling.

Input trace routing follows a simple but unforgiving rule: keep it as short as physically possible. A 5 mm microstrip trace on a typical RF substrate introduces approximately 0.3–0.5 dB of insertion loss at 6 GHz. In an LNA with a target noise figure of 1.0 dB, that trace loss alone would consume 30–50% of the entire noise budget before the signal even reaches the active device.

2.2 Stability and Isolation

LNA stability presents a perpetual design challenge. The combination of high gain (typically 15–25 dB) and reverse isolation limitations can lead to oscillation, particularly when the output is poorly matched. LNA PCBs employ several techniques to maintain unconditional stability: resistive loading at the input (trading a small noise figure penalty for stability margin), ferrite-bead biasing networks that present high impedance at RF frequencies, and careful physical separation between input and output sections — often placing them on opposite sides of the PCB with a via-fence barrier between them.

3. Front-End Module (FEM) PCBs: Integration at Scale

Front-End Modules represent the culmination of RF integration, combining PAs, LNAs, switches, filters, and duplexers onto a single PCB or laminate substrate. FEM PCBs are the workhorses of modern smartphones, where a single FEM might handle multiple frequency bands across 4G LTE and 5G NR with carrier aggregation.

3.1 Multi-Band Complexity

A modern cellular FEM PCB must route signals across dozens of bands spanning 600 MHz to 6 GHz (FR1) and potentially 24–40 GHz (FR2/mmWave). Each band requires its own filter path, often implemented as Surface Acoustic Wave (SAW) or Bulk Acoustic Wave (BAW) devices soldered onto the FEM PCB. The switching network that selects between bands must maintain better than 20 dB of isolation between inactive paths to prevent cross-band interference — a requirement that drives careful layout of guard traces, grounded coplanar waveguide structures, and strategic placement of isolation walls.

3.2 Antenna Interface and Impedance Tuning

The antenna port of an FEM PCB faces the most unpredictable impedance environment in the entire RF chain. Antenna impedance can vary dramatically — from 25 to 150 ohms — depending on the device's proximity to the user's body, hand position, and nearby metallic objects. Modern FEM PCBs incorporate aperture tuning networks with digitally controlled capacitor banks and switchable inductors, allowing the system to dynamically re-match the antenna across frequency and use-case. These tuning networks require ultra-low ESR components and PCB traces with Q-factors exceeding 50 at 2 GHz.

4. Microwave Module PCBs: Bridging RF and Millimeter-Wave

Microwave module PCBs occupy the frequency range roughly from 1 GHz to 30 GHz, bridging traditional RF and emerging millimeter-wave applications. These PCBs serve applications including point-to-point microwave links, satellite communications, radar systems, and electronic warfare.

The transition from RF to microwave frequencies introduces new PCB design considerations. At 10 GHz, a quarter wavelength on Rogers 4003C is approximately 4.3 mm — small enough that parasitic effects from component pads and via transitions become significant. At 30 GHz, that quarter wavelength shrinks to 1.4 mm, demanding that every pad, bend, and junction be modeled as a distributed element rather than a lumped component.

Microwave module PCBs commonly employ multi-layer constructions with buried stripline layers for critical signal routing. Stripline offers superior isolation compared to microstrip because the signal trace is fully embedded between two ground planes, eliminating radiation loss and providing 100% shielding. However, the transition from stripline to surface-mount components requires carefully designed via transitions that maintain 50-ohm impedance through the vertical interconnect.

5. Millimeter-Wave (mmWave) PCBs: 5G FR2 and Beyond

Millimeter-wave PCB design — covering frequencies from 30 GHz to 100 GHz and beyond — represents the frontier of RF PCB technology. 5G NR FR2 bands (n257, n258, n260, n261) operate at 24–40 GHz, while emerging 6G research explores D-band (110–170 GHz) and beyond. At these frequencies, traditional PCB design rules break down, and the designer must think in terms of electromagnetic wave propagation rather than circuit theory.

5.1 Material Selection: The Critical Decision

At mmWave frequencies, the dissipation factor (Df or tan δ) of the PCB substrate becomes the dominant loss mechanism. While FR-4 with Df ≈ 0.02 may be acceptable at 2.4 GHz, at 60 GHz the dielectric loss alone would exceed 3 dB per inch — rendering it unusable. mmWave PCBs demand low-loss materials: Rogers RO3003 (Df = 0.0010 at 10 GHz), Isola Astra MT77 (Df = 0.0017 at 10 GHz), or Panasonic Megtron 7 (Df = 0.001 at 10 GHz).

Surface roughness of the copper foil also becomes critical. At mmWave frequencies, the skin depth in copper is approximately 0.3 µm at 40 GHz and 0.2 µm at 100 GHz. Standard electrodeposited (ED) copper with RMS roughness of 1–2 µm effectively increases conductor loss by 10–30% due to the elongated current path along surface peaks and valleys. Rolled annealed copper or ultra-low-profile ED copper with RMS roughness below 0.5 µm is essential for mmWave designs.

6. WiFi Module PCBs: The Ubiquitous RF Platform

WiFi module PCBs represent the highest-volume RF PCB category, with billions of units shipped annually. From simple IoT sensor nodes using WiFi 4 (802.11n) to advanced tri-band WiFi 7 (802.11be) access points, WiFi PCB design spans a wide range of complexity and performance requirements.

WiFi 6E and WiFi 7 have expanded WiFi operation into the 6 GHz band (5.925–7.125 GHz), adding 1,200 MHz of new spectrum. This expansion places new demands on PCB design: front-end filters must now cover 2.4 GHz, 5 GHz, and 6 GHz bands simultaneously, requiring wider-bandwidth matching networks and filters. The PCB traces must maintain consistent 50-ohm impedance across a fractional bandwidth exceeding 100% for tri-band designs.

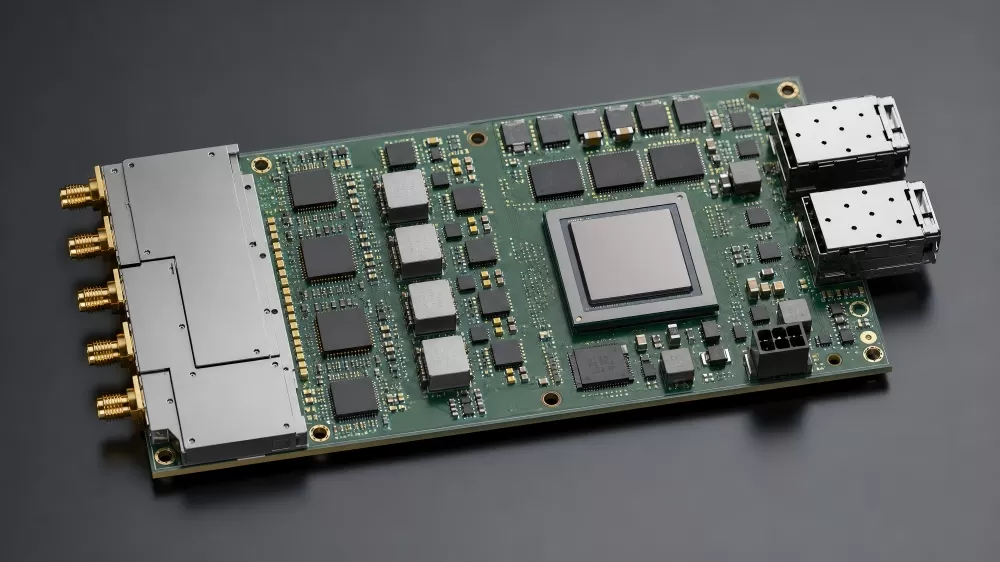

7. SDR PCB Platforms

Software-Defined Radio PCBs represent the convergence of RF and digital design. An SDR platform digitizes the RF spectrum as close to the antenna as practical, performing modulation, demodulation, filtering, and protocol processing in software. This demands PCBs that can simultaneously handle low-noise RF signals at the antenna input and high-speed digital data streams from ADCs and DACs running at multiple gigasamples per second.

The mixed-signal nature of SDR PCBs creates unique layout challenges. High-speed digital signals from JESD204B/C interfaces running at 12.5 Gbps per lane must coexist with RF inputs sensitive to -120 dBm signals. This requires isolation exceeding 100 dB between digital and RF domains — achieved through physical separation, buried stripline routing for all digital signals, and continuous ground planes with no shared return paths between domains.

8. Integrated RF Modules: System-in-Package Evolution

The ultimate expression of RF integration is the System-in-Package (SiP) or multi-chip module (MCM) approach, where multiple RF die — PAs, LNAs, switches, filters, and sometimes even the transceiver — are integrated onto a common laminate substrate with embedded passives. These integrated modules push PCB technology to its limits, requiring layer counts of 8–16 with laser-drilled microvias connecting layers with feature sizes down to 25 µm line/space.

Superb Tech delivers full-spectrum RF PCB manufacturing capabilities — from simple two-layer WiFi modules to complex 16-layer hybrid-stack mmWave assemblies with mixed dielectric materials. Our facilities support trace width tolerances down to ±10 µm on critical RF layers, laser-drilled blind and buried vias, and comprehensive RF testing including VNA measurements to 67 GHz.
