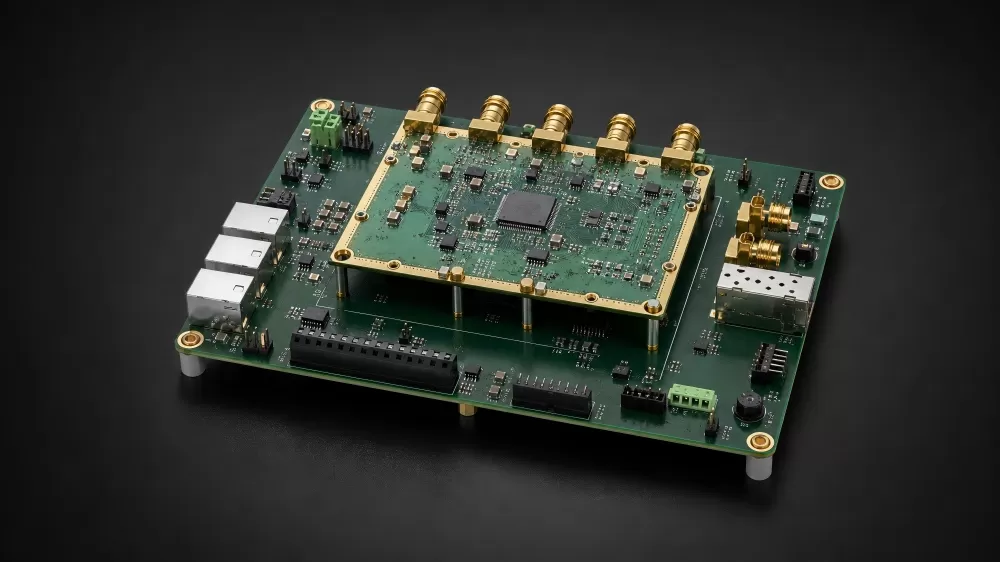

Behind every production RF module lies an ecosystem of test and verification platforms that ensured its performance before a single unit shipped. These platforms — validation boards, evaluation boards, test fixtures, debug boards, integration test cards, and performance characterization carriers — form the critical infrastructure that bridges the gap between semiconductor datasheets and real-world system performance. While they receive far less attention than the products they validate, test and verification PCBs demand some of the most exacting standards in the entire PCB industry. A validation board that introduces 0.5 dB of additional insertion loss or 5 degrees of phase error can mask device performance issues or, worse, cause good devices to be incorrectly rejected. This article examines the PCB design considerations, material selections, and manufacturing requirements unique to RF test and verification platforms.

1. The Test Platform Hierarchy

RF test PCBs span a hierarchy from early-stage device evaluation through production test to system-level validation. Each tier imposes different requirements on the PCB.

1.1 Validation Boards: The Gold Standard

Validation boards serve as the reference platform against which all subsequent measurements are compared. Typically designed by semiconductor manufacturers to characterize new RF devices, these boards must provide the most transparent possible electrical path between the measurement equipment and the device under test (DUT). A validation board's PCB losses must be known, stable, and de-embeddable — meaning that the board's S-parameters can be measured and mathematically removed from the overall measurement to reveal the DUT's intrinsic performance.

The de-embedding process demands that the validation board include on-board calibration structures — typically Thru, Reflect, Line (TRL) standards — fabricated on the same substrate, with the same trace geometry, and in close physical proximity to the DUT. These calibration structures enable the measurement system to characterize the PCB's transmission lines up to the DUT reference plane with accuracy exceeding that achievable with coaxial calibration kits alone. The TRL structures must be designed for the specific frequency range: the "Line" standard's length difference relative to "Thru" determines the calibration bandwidth, with a 20–160 degree phase difference across the band providing optimal accuracy.

1.2 Evaluation Boards: Bridging Datasheet and Design

Evaluation boards (EVBs) translate validation board measurements into a form that system designers can directly evaluate. Unlike the minimalist validation board optimized for measurement accuracy, an EVB represents a realistic implementation that a customer might build — complete with voltage regulators, bias tees, control interfaces (SPI, I2C, MIPI RFFE), and standard RF connectors (SMA, SMP, or 2.92 mm).

The EVB PCB designer faces a tension between two competing goals: the board must perform close enough to the device's intrinsic capability that the customer sees the device's potential, yet it must be implemented with sufficiently realistic components and layout that the customer can reproduce the results in their own design. This tension drives EVB designs toward mid-loss substrate materials (Rogers 4350B or equivalent), well-decoupled power supplies with low-noise LDO regulators, and generous ground plane coverage with via stitching.

EVB PCBs increasingly incorporate USB interfaces for digital control and data streaming, enabling customers to evaluate devices using graphical user interface software rather than laboratory instruments. This USB interface adds a digital section to the PCB that must be carefully isolated from the sensitive RF sections to prevent noise contamination of measurement results.

2. Test Fixture PCB Design

Production test fixtures occupy a unique niche in the PCB landscape. Unlike validation and evaluation boards that are used in laboratory environments, test fixtures must survive thousands of insertion cycles in manufacturing environments while maintaining consistent RF performance.

2.1 Connector Selection and Durability

The RF connectors on a test fixture PCB are its most mechanically stressed components. A production test fixture may see 500–1000 mating cycles per day during high-volume manufacturing, accumulating tens of thousands of cycles over its service life. Standard SMA connectors rated for 500 cycles will fail within weeks under such conditions, manifesting as intermittent contacts, degraded return loss, and eventually complete mechanical failure.

Production test fixtures employ connectors rated for 5,000–10,000 cycles, typically stainless steel body designs with beryllium copper center contacts. The PCB footprint for these connectors must be reinforced — the connector body soldered to a large ground pad that distributes mechanical stress across the board, with additional non-plated mounting holes for mechanical screws that transfer the mating force directly to the fixture's chassis rather than through the solder joints.

2.2 Socketed Test Fixtures

For packaged RF devices (QFN, LGA, BGA), test fixtures incorporate precision sockets that make temporary electrical contact with the DUT without soldering. The socket-to-PCB interface is particularly demanding: the socket's spring-loaded contacts (pogo pins or elastomer contacts) must land on PCB pads with high positional accuracy, and the PCB pads must be plated with a durable, low-contact-resistance finish.

The PCB pads for socket contacts typically use hard gold plating (Type III, 99.7% gold minimum, 50–100 microinches thickness) over nickel to resist wear from repeated contact cycles. The pad geometry must match the socket manufacturer's recommended footprint with tight tolerance — typically ±50 µm for position and ±25 µm for size — to ensure reliable contact without damaging the socket pins.

2.3 Thermal Management in Test Fixtures

Many RF test procedures require temperature characterization across the full operating range of the device, typically -40°C to +85°C or extended ranges to +125°C for automotive and industrial applications. The test fixture PCB must maintain stable electrical performance across this temperature range, meaning that the substrate material's dielectric constant (Dk) must exhibit minimal thermal coefficient. Rogers RO4350B, for example, has a thermal coefficient of Dk of +50 ppm/°C — a shift of approximately 0.2% across a 125°C span — which is acceptable for most applications. For the highest-precision measurements, ceramic-filled PTFE materials like Rogers RO3003 offer thermal coefficients below -10 ppm/°C.

3. Debug and Bring-Up Boards

Debug boards serve a fundamentally different purpose from validation and test platforms: their goal is not to measure performance but to provide visibility into the internal operation of an RF system. Debug PCBs incorporate test points, probe landing pads, current sense resistors, and configurable jumpers that enable engineers to isolate faults and verify functionality during the bring-up phase of development.

The PCB design for debug boards favors access over performance. RF traces that would normally be buried on inner layers for isolation are instead brought to the surface with test point stubs, even though these stubs create impedance discontinuities. The trade-off is accepted because the debug board's role is temporary — it exists to identify problems that will be fixed in the next revision, not to demonstrate final performance.

Advanced debug boards incorporate high-impedance active probe points that present minimal loading to the RF circuit (typically < 0.1 pF capacitance and > 1 kΩ resistance at the probe tip) while providing buffered outputs to oscilloscopes or spectrum analyzers. These active probe circuits must themselves be powered and referenced, adding complexity to the PCB but dramatically improving the quality of debug measurements.

4. Performance Characterization Carriers

Performance characterization carriers represent the pinnacle of RF test PCB technology. These specialized platforms support measurements that push the limits of RF instrumentation: load pull (characterizing device performance as a function of load impedance), noise parameter extraction, intermodulation distortion characterization, and pulse profiling for radar and communications applications.

Load pull characterization requires the test PCB to present a precisely controlled and variable impedance to the DUT across a Smith chart. This is typically achieved through external mechanical or electronic tuners connected to the PCB via precision RF connectors, but the PCB itself must present a known, stable impedance at the tuner reference plane. Any impedance variation in the PCB — from connector transitions, trace discontinuities, or via parasitics — reduces the accuracy of the load pull measurement and the range of impedances that can be presented to the DUT.

Characterization carriers for on-wafer probing present an entirely different set of requirements. These PCBs must provide calibration standards (Short, Open, Load, Thru) at the probe tip reference plane, implemented as precision thin-film structures on the PCB surface that the probes can directly contact. The dimensional accuracy of these calibration structures — particularly the load standard's resistance and the open standard's capacitance — directly determines measurement accuracy. Thin-film nichrome or tantalum nitride resistors deposited directly on the ceramic or quartz substrate provide the most accurate load standards, with resistance tolerances better than 0.1% and parasitic reactance minimized through careful geometry design.

5. Manufacturing Precision for Test PCBs

Test and verification PCBs demand manufacturing tolerances that exceed those of the products they validate. A validation board for a 28 GHz 5G device must maintain 50-ohm impedance within ±3% (rather than the ±10% acceptable for many commercial products) and must do so consistently across every panel in a production batch. Superb Tech achieves this through direct imaging lithography, precision laser drilling with post-drill desmear processing, and 100% impedance testing on every panel using TDR (Time Domain Reflectometry) with automated pass/fail criteria.

The surface finish on test PCBs requires particular attention. While ENIG (Electroless Nickel Immersion Gold) is common for production boards, its nickel underlayer is ferromagnetic and introduces frequency-dependent losses that can distort precision RF measurements. For characterization carriers and validation boards above 10 GHz, Superb Tech recommends ENEPIG or immersion silver finishes that eliminate the lossy nickel layer while maintaining solderability and wire bondability.
