Individual RF modules — however well-designed — deliver value only when integrated into a coherent system. The printed circuit boards that perform this integration — signal interface boards, module carrier boards, system evaluation platforms, and control interface boards — form the connective tissue of modern RF systems. These integration PCBs face a unique set of challenges: they must route diverse signal types (RF, digital, analog, power) across multiple modules while maintaining signal integrity, managing thermal loads, and providing the mechanical rigidity and interconnection density that complex systems demand. This article explores the design, materials, and manufacturing considerations for RF module system integration and interface PCBs.

1. Signal Interface Boards: The RF-Digital Bridge

Signal interface boards serve as the translation layer between RF modules and the digital processing subsystems that control them. In a modern 5G base station, for example, the signal interface board routes baseband I/Q data between the digital front-end processors and multiple RF transceiver modules, distributes reference clocks and synchronization signals, and carries control plane traffic for module configuration and status monitoring.

1.1 Multi-Protocol Signal Routing

A single signal interface board may carry a diverse array of signal types, each with its own routing requirements:

• High-speed serial data: JESD204B/C lanes at 12.5–32 Gbps, 100-ohm differential impedance, ±2 mm intra-pair skew, maximum trace length determined by channel loss budget (typically < 200 mm at 12.5 Gbps on Megtron 6)

• RF/IF analog signals: 50-ohm single-ended microstrip or stripline, frequency-dependent loss management, phase-matched across multiple channels for phased-array applications

• Reference clocks: Ultra-low phase noise routing, 50-ohm impedance, isolated from digital switching noise by dedicated ground planes and guard traces

• Control interfaces: SPI, I2C, UART at modest speeds (< 50 MHz), length not critical but susceptible to crosstalk from adjacent high-speed signals

• Power distribution: Multiple voltage rails (0.8V to 12V) with current capacities from milliamps to tens of amps, requiring dedicated plane layers with appropriate copper weight

The PCB designer's challenge is to route all of these signal types on a shared substrate without cross-contamination. The primary tool is vertical segregation: high-speed digital signals are routed on inner stripline layers sandwiched between ground planes, RF signals occupy the top microstrip layer with immediate ground reference, and DC/low-speed control signals fill the remaining routing layers with relaxed constraints. Each transition between signal domains — for example, when a JESD204B lane must be routed from the inner digital layers to a top-layer connector — requires careful via design with ground-return vias placed adjacent to each signal via to maintain a continuous return path.

1.2 Connector Selection and PCB Launch Design

The connectors that join signal interface boards to RF modules represent critical impedance discontinuities in the signal path. At frequencies above 10 GHz, the connector-to-PCB transition (the "launch") can contribute 0.5–2 dB of insertion loss and degrade return loss to -10 dB or worse if improperly designed.

Precision RF connectors — including SMP, SMPM, SMPS, and GPPO/GPO series — employ a captivated center contact that mates with a PCB surface-mount or edge-launch pad. The PCB launch design must compensate for the parasitic capacitance of the pad (typically 0.1–0.3 pF) and the inductive stub of any via used to transition from the pad to an inner layer. Techniques include:

• Ground plane clearance (anti-pad) optimization around the signal via to tune the via's characteristic impedance

• Blind via termination — stopping the signal via at its target layer rather than allowing it to continue as a stub

• Back-drilling of through-hole vias to remove unused via barrel sections that would otherwise act as quarter-wave stubs at high frequencies

• Tapered pad geometries that provide a gradual impedance transition from the connector contact to the 50-ohm trace

Superb Tech's PCB manufacturing supports back-drilling with ±50 µm depth accuracy, blind/buried via constructions to eliminate stubs, and controlled-depth routing for edge-launch connector footprints — all essential capabilities for high-frequency signal interface boards.

2. Module Carrier Boards: The Mechanical Backbone

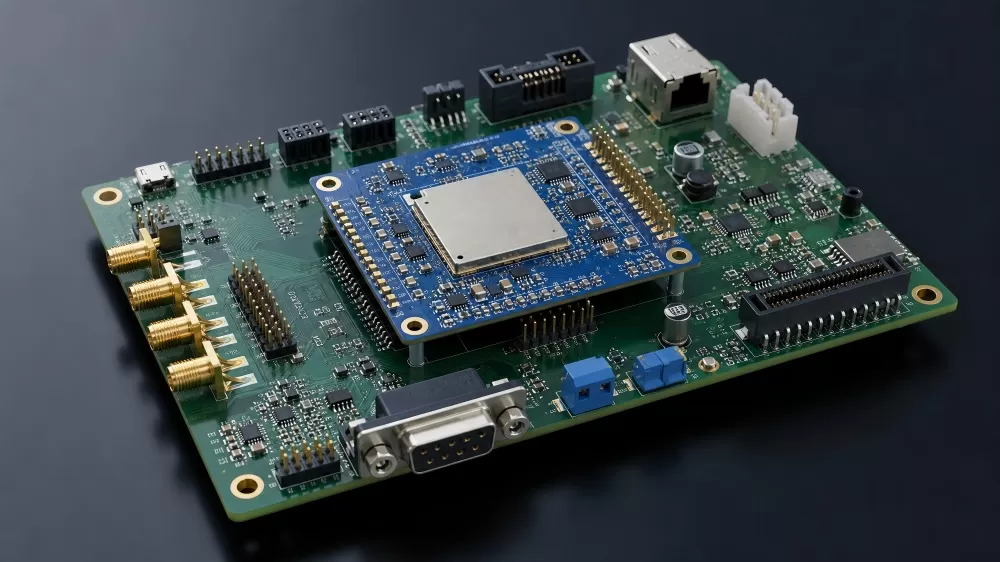

Module carrier boards provide the mechanical platform that hosts multiple RF modules, distributes power and signals, and manages thermal dissipation. Unlike signal interface boards that prioritize electrical performance, carrier boards must balance electrical, mechanical, and thermal requirements — often with conflicting demands.

2.1 Mechanical Design Integration

Carrier boards in aerospace, defense, and telecommunications applications must conform to standardized mechanical form factors — VITA (VPX, VME), PICMG (CompactPCI, AdvancedTCA), or custom chassis specifications. The PCB must incorporate mounting holes, card guides, extractor handles, and alignment pins that interface with the chassis while maintaining electrical isolation between the chassis ground and the PCB's signal ground (except at designated single-point ground connections).

The mechanical constraints of these form factors often drive the PCB outline to include cutouts, slots, and irregular shapes that complicate both the electrical layout and the manufacturing process. Complex board outlines require routing rather than scoring for panel separation, with routed slots achieving minimum widths of 0.8–1.0 mm depending on material and thickness.

2.2 Power Distribution and Thermal Design

A carrier board hosting multiple RF modules may need to distribute 100–500 watts of DC power. At 12V, a 300-watt power budget translates to 25 amps of current — requiring dedicated power plane layers with 2-ounce or heavier copper. The voltage drop across the power distribution network must be kept below 1–2% (120–240 mV at 12V) at full load, which in turn constrains the maximum resistance of the power planes and the placement of voltage sense lines for remote sensing at the point of load.

Thermal management on carrier boards employs multiple strategies:

• Thermal vias: Arrays of plated through-holes directly under high-power devices, filled with thermally conductive epoxy or left unfilled for convection cooling, providing a vertical heat path to a heatsink on the opposite side of the board

• Embedded copper coins: Solid copper inserts laminated into the PCB directly under the highest-power devices (PAs, FPGAs), offering thermal conductivity two orders of magnitude better than the PCB dielectric

• Metal-core construction: An aluminum or copper base layer bonded to the bottom of the PCB through a thin, thermally conductive but electrically insulating dielectric layer, spreading heat across the entire board area

• Heatsink interface: The PCB surface under heatsink-mounting areas must be flat within 0.1 mm across the heatsink footprint to ensure uniform thermal contact, achieved through controlled pressing during lamination and selective solder mask application to prevent thickness buildup in heatsink areas

3. System Evaluation Platforms

System evaluation platforms represent the highest level of integration among RF test PCBs. These platforms combine multiple RF modules — transceivers, PAs, LNAs, filters, and antennas — into a complete working system that can be evaluated under realistic operating conditions. The platform PCB must provide all inter-module connections, power distribution, control interfaces, and test access points while maintaining signal integrity across the entire signal chain.

The design of system evaluation platforms follows a hierarchical approach. The top-level interconnect is defined by the system architecture diagram, with each block in the diagram mapped to a physical module location on the PCB. The inter-module connections — whether RF (coaxial cables, board-to-board connectors, or PCB traces), digital (high-speed serial links), or control (SPI/I2C buses) — must be routed with consideration for isolation between parallel signal paths. RF isolation between transmit and receive paths on a full-duplex system evaluation platform must typically exceed 60 dB to prevent receiver desensitization, requiring physical separation, grounded guard traces, and in some cases metallic shielding fences soldered to the PCB between critical sections.

4. Control Interface Boards

Control interface boards manage the configuration, monitoring, and orchestration of RF modules within a system. While they operate at relatively low frequencies (typically sub-100 MHz), their design requires careful attention to signal integrity due to the long trace lengths often involved (200–500 mm in large systems) and the presence of multiple slave devices on shared buses.

4.1 Multi-Drop Bus Design

SPI and I2C buses on control interface boards often serve 8–16 slave devices distributed across a large PCB area. Each slave device on the bus presents a capacitive load (typically 5–10 pF per device for I2C, 3–5 pF for SPI chip-select), and the cumulative bus capacitance limits the maximum clock frequency and rise time. For an I2C bus with 12 slave devices, the total bus capacitance can exceed 100 pF, requiring careful pull-up resistor selection (typically 1–2.2 kΩ for 3.3V operation) to meet rise-time specifications.

For longer bus runs or higher device counts, control interface boards employ I2C buffers/repeaters or SPI fan-out buffers that segment the bus into electrically isolated sections, each driving a subset of slave devices. The PCB layout must ensure that the buffered bus segments maintain consistent ground reference — all I2C devices on a segment must share the same ground potential within a few hundred millivolts to prevent logic threshold violations.

4.2 Mixed-Signal Isolation

Control interface boards often bridge between digital processing subsystems and RF modules, requiring isolation between noisy digital grounds and quiet analog/RF grounds. Digital isolators — either capacitive (using on-chip SiO2 isolation barriers) or magnetic (using on-chip transformer coupling) — provide galvanic isolation up to 5 kV while passing SPI, I2C, or GPIO signals. The PCB layout for these isolators must maintain the isolation barrier: the creepage and clearance distances between the digital-side and RF-side circuits must meet the voltage rating, and no copper pours, traces, or components may bridge the isolation gap on any layer.

Superb Tech's control interface PCB manufacturing supports the fine-pitch routing and isolation requirements of modern digital isolator ICs, including the narrow-body SOIC packages (3.9 mm body width, 0.65 mm pin pitch) common in isolated SPI and I2C applications.

5. Manufacturing Integration PCBs at Scale

System integration PCBs often push the limits of PCB manufacturing technology. A large carrier board for a telecommunications system may measure 400 × 400 mm or larger, incorporate 20–30 layers, mix multiple substrate materials (hybrid stackup), and require thousands of vias ranging from 100 µm laser microvias to 300 µm through-hole vias with back-drilling. The manufacturing process for these boards demands tight process control at every step — inner layer imaging, lamination, drilling, plating, and final finish — to achieve the required yields.

Superb Tech's manufacturing capabilities for system integration PCBs include panel sizes up to 610 × 760 mm, layer counts to 40+, via aspect ratios to 12:1 for through-hole and 1:1 for laser microvias, and comprehensive electrical testing including 4-wire Kelvin measurements for critical power and ground nets.
