1. The Nervous System of Electric Vehicles

If the high-voltage powertrain is the muscle of an electric vehicle, the vehicle control and chassis electronics are its nervous system. The Vehicle Control Unit (VCU) acts as the central brain, coordinating torque requests from the accelerator pedal into motor commands, managing energy flow between the battery and the drivetrain, and orchestrating the thermal management system. Meanwhile, chassis electronics—Electric Power Steering (EPS), brake-by-wire, and electronic stability control—translate driver intent into vehicle motion with millisecond precision and uncompromising safety.

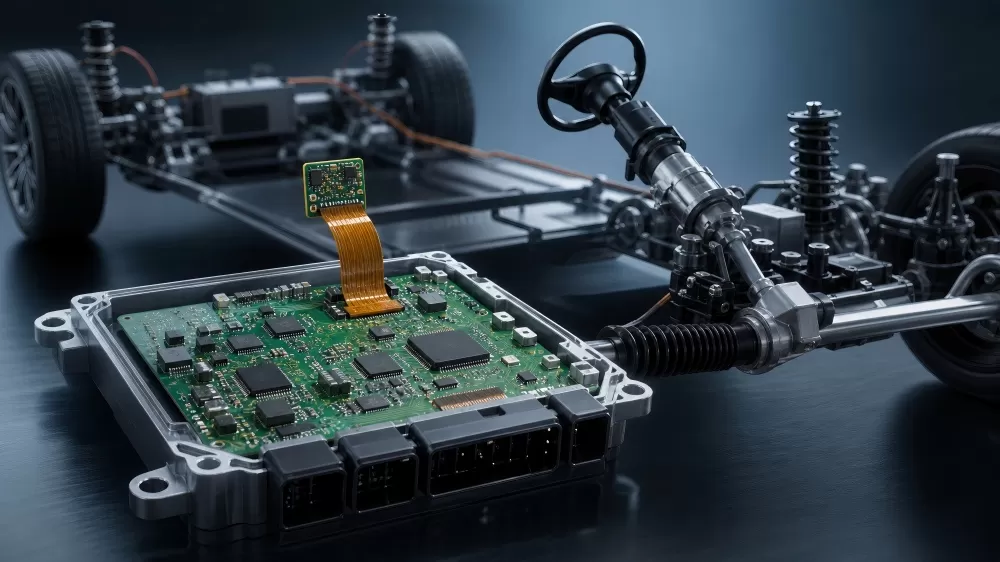

This article examines the PCBs at the heart of vehicle control and chassis systems, from the VCU main board to the flexible printed circuits (FPCs) that snake between battery cells, and the fail-operational EPS controller that must never lose steering assist during a fault.

2. Vehicle Control Unit (VCU) PCB

2.1 VCU Functional Architecture

The VCU is the supervisory controller for the entire vehicle. Its PCB integrates:

• Main MCU: An ASIL-D rated multi-core microcontroller (Infineon Aurix TC3xx, NXP S32K3, Renesas RH850/U2A) with lockstep cores for safety-critical functions

• CAN FD interfaces: 4-8 CAN FD channels for communication with BMS, motor controller, OBC, DCDC, and body domain controllers

• Automotive Ethernet: 100BASE-T1 or 1000BASE-T1 for high-bandwidth communication with ADAS domain controller (newer architectures)

• Analog inputs: Accelerator pedal position (dual-redundant potentiometers), brake pedal position, PRND switch, and key position sensing

• Digital I/O: Relay drivers for main contactor control, wake/sleep management, and system status indication

2.2 VCU PCB Design Requirements

The VCU PCB is typically 6-10 layers with the following characteristics:

• Automotive temperature grade: Grade 2 (-40°C to +105°C ambient) for cabin-mounted; Grade 1 (-40°C to +125°C) for under-hood

• MCU decoupling: Extensive MLCC decoupling network (100nF + 10nF + 1nF per power pin pair) with low-ESL reverse-geometry capacitors for the high-speed core supply

• CAN FD routing: 120Ω differential impedance ±10%, with common-mode chokes at each connector

• Crystal oscillator layout: The MCU's external crystal (typically 20-40MHz) requires guard rings, short traces (<10mm), and isolation from noisy digital signals

• Conformal coating: Required for corrosion protection unless the VCU is in a sealed enclosure

2.3 Redundancy and Fail-Safe Design

For ASIL-C/D functions (torque monitoring, contactor control), the VCU PCB incorporates:

• Dual-redundant power supplies with independent voltage monitoring

• External watchdog IC with independent clock source (separate from the MCU's clock)

• Monitoring traces that detect open-circuit or short-to-ground faults on critical inputs

• Safe state default: all high-voltage contactors default to open if the VCU loses power or the MCU enters fault state

3. Battery Cell Sampling FPC Solutions

3.1 The FPC Advantage in Battery Packs

Modern EV battery packs contain hundreds to thousands of individual cells (18650, 21700, or prismatic format). Monitoring each cell's voltage and temperature traditionally required a wire harness—heavy, labor-intensive to assemble, and prone to connection failures. Flexible Printed Circuits (FPCs) have emerged as the superior alternative:

• Weight reduction: An FPC harness for a 96-cell module weighs 60-80% less than an equivalent wire harness

• Assembly automation: FPCs can be robotically placed and bonded to cell terminals, eliminating manual wire routing

• Consistent electrical performance: Precise trace geometry ensures consistent voltage drop and parasitic capacitance across all cells

• Integrated temperature sensing: NTC thermistors can be soldered directly to the FPC at precise locations between cells

3.2 FPC Material and Construction

A battery cell-sampling FPC typically uses:

• Base material: Polyimide (Kapton), 25-50μm thick, with acrylic or epoxy adhesive

• Copper layers: 1 or 2 layers, 1 oz (35μm) rolled annealed copper for maximum flex life

• Coverlay: Polyimide coverlay, 25μm, with adhesive, laser-cut to expose cell terminal connection pads

• Stiffeners: FR-4 or polyimide stiffeners (0.2-0.5mm) at connector areas for ZIF (Zero Insertion Force) connector insertion

• Surface finish: ENIG (electroless nickel immersion gold) or ENEPIG for aluminum wire bonding compatibility with cell terminals

3.3 Design Considerations

• Voltage sensing accuracy: The FPC voltage sense traces carry microampere currents; trace resistance must be calibrated or compensated to maintain ±5mV measurement accuracy

• High-voltage spacing: Adjacent cell terminals may have 4.2V potential difference—not high per se, but when cells in series are adjacent on the FPC, the terminal-to-terminal voltage can reach 50V+, requiring appropriate spacing

• Dynamic flex requirements: FPC sections that flex during assembly or operation must use curved traces (not sharp corners) and avoid vias in the flex zone

4. Electric Power Steering (EPS) PCB

4.1 EPS System Architecture

Electric Power Steering is a safety-critical system (ASIL-D) that must provide steering assist under all conditions. The EPS PCB controls a brushless DC motor (typically 1-3kW) that applies torque to the steering column or rack. Key PCB functions:

• Motor control: A 32-bit MCU or DSP executing field-oriented control (FOC) at 20kHz PWM, driving a 3-phase inverter (6 MOSFETs)

• Torque sensing: Interface to the steering torque sensor (typically a dual-redundant magneto-elastic or Hall-effect sensor)

• Rotor position sensing: Resolver or AMR/GMR angle sensor for precise commutation

• Phase current sensing: 2 or 3 shunt resistors with isolated amplifiers for closed-loop current control

4.2 EPS PCB Special Requirements

The EPS PCB must be fail-operational: a single fault must not cause loss of steering assist. This drives:

• Dual-redundant power supply: Separate 12V feeds from the vehicle power distribution, each capable of supplying the full EPS load

• Phase redundancy: In some architectures, the motor has two independent 3-phase winding sets, each driven by a separate inverter half on the PCB

• MCU redundancy: Dual lockstep cores or dual independent MCUs that cross-check computation results

• PCB isolation: Physical separation (5mm+) between redundant power and signal paths to prevent common-cause failures from a single PCB crack or contaminant

4.3 Thermal and Mechanical Design

The EPS PCB is mounted directly on or adjacent to the motor and gearbox, experiencing severe thermal and vibration conditions:

• Aluminum-core PCB: The power inverter section often uses aluminum-core IMS PCB for direct heat transfer to the EPS housing

• Vibration damping: The PCB must survive 15G RMS random vibration (10-2000Hz) per ISO 16750-3; heavy components (inductors, electrolytic capacitors) require adhesive staking

• Thermal cycling: -40°C to +125°C with the motor self-heating adding 30-50°C rise during operation

5. Brake-by-Wire & ABS Control PCBs

5.1 Brake Control Electronics

Modern EVs use electro-hydraulic or fully electric brake systems (e.g., Bosch iBooster, Continental MK C1) that integrate brake actuation with ABS and ESC functions. The brake control PCB includes:

• Pressure sensor interfaces: Multiple analog pressure sensors (master cylinder, wheel circuits) with precision ADC inputs

• Solenoid valve drivers: 8-12 solenoid valves with PWM current control and diagnostic feedback (open-load, short-circuit detection)

• Pump motor driver: Brushed DC motor driver with current sensing and PWM control

• Wheel speed sensor interfaces: 4× Hall-effect or AMR wheel speed sensors with robust EMC immunity

5.2 PCB Requirements

Brake control PCBs are ASIL-D rated and typically 4-8 layer designs with:

• Reinforced isolation: Between the 12V vehicle domain and the high-voltage pump motor driver (in hybrid systems)

• Rugged construction: The PCB is often potted or over-molded to survive the brake fluid environment

• Heavy copper: 2-3 oz for pump motor traces carrying 15-30A peak

6. Chassis Communication Backbone PCBs

6.1 CAN FD Gateway PCB

Vehicles with domain or zonal architectures require gateway PCBs that route messages between CAN FD, LIN, and Ethernet domains. A chassis gateway PCB typically:

• Layer count: 6-8 layers

• Processors: Automotive gateway SoC (NXP S32G, TI DRA829) with hardware-accelerated routing and security

• Interfaces: 6-12 CAN FD channels, 2-4 Automotive Ethernet ports, 4-8 LIN channels

• Security: Hardware Security Module (HSM) for secure boot, message authentication, and ECU-to-ECU communication encryption

7. Functional Safety PCB Design (ASIL-C/D)

7.1 ISO 26262 Hardware Metrics

ASIL-C/D PCBs must meet quantitative hardware metrics:

• SPFM (Single Point Fault Metric): ≥97% for ASIL-C, ≥99% for ASIL-D

• LFM (Latent Fault Metric): ≥80% for ASIL-C, ≥90% for ASIL-D

• PMHF (Probabilistic Metric for Hardware Failures): <100 FIT for ASIL-C, <10 FIT for ASIL-D

7.2 PCB-Level Safety Mechanisms

Translating these metrics to PCB design requires:

• Pin-level diagnostics: ADC inputs must detect open-circuit (via pull-up/pull-down resistors), short-to-ground, and short-to-battery faults

• Power supply monitoring: Independent voltage supervisors (not just the MCU's internal ADC) with SVS (supply voltage supervisor) ICs that assert reset if any rail deviates

• Clock monitoring: The MCU's clock monitor unit (CMU) detects loss-of-clock or frequency drift, triggering a safe state transition

• Memory protection: ECC on all safety-critical RAM and flash; periodic memory built-in self-test (MBIST)

8. Automotive PCB Layer Stackup Standards

A typical 8-layer automotive control PCB stackup:

9. Validation & Qualification Requirements

9.1 PCB-Level Qualification

Automotive control PCBs must pass:

• IPC-6012DA Class 3 Automotive: The automotive addendum to the rigid PCB performance specification

• Thermal shock: -40°C to +125°C, 1000 cycles (for under-hood)

• Vibration: Per ISO 16750-3, typically 10-2000Hz at 2.7-6.6G RMS depending on mounting location

• Humidity: 85°C/85%RH biased (powered) for 1000 hours

9.2 System-Level EMC

Automotive EMC requirements (CISPR 25, ISO 11452) are stringent:

• Radiated emissions: Class 5 limits typically apply (most stringent)

• Conducted emissions: On power and signal lines, 150kHz-108MHz

• Bulk current injection (BCI): 1MHz-400MHz, up to 200mA on signal lines

• ESD: ±8kV contact, ±15kV air per ISO 10605

10. Zonal Architecture: The Future of Vehicle Control

The industry is transitioning from domain-based (powertrain, chassis, body, infotainment) to zonal architectures where ECUs are placed near the physical loads they control, regardless of functional domain. This is enabled by high-bandwidth automotive Ethernet backbones and centralized compute platforms. PCB implications include:

• Zonal controller PCBs: Combining power distribution (e-Fuse/smart FET) with gateway routing and local I/O in a single board

• Higher layer counts: Zonal controllers integrate functions previously on separate ECUs, requiring 8-14 layers

• Mixed-voltage domains: 12V, 5V, 3.3V, and 1.8V domains on the same PCB, with careful power plane partitioning

11. Conclusion

The vehicle control and chassis PCBs of an electric vehicle represent the culmination of decades of automotive electronics evolution. From the VCU that orchestrates the entire vehicle to the FPCs that monitor individual battery cells, these boards must deliver fail-operational reliability, withstand extreme environmental conditions, and meet the rigorous demands of ISO 26262 functional safety. As the industry moves toward zonal architectures and software-defined vehicles, the complexity and capability of these PCBs will only increase.
