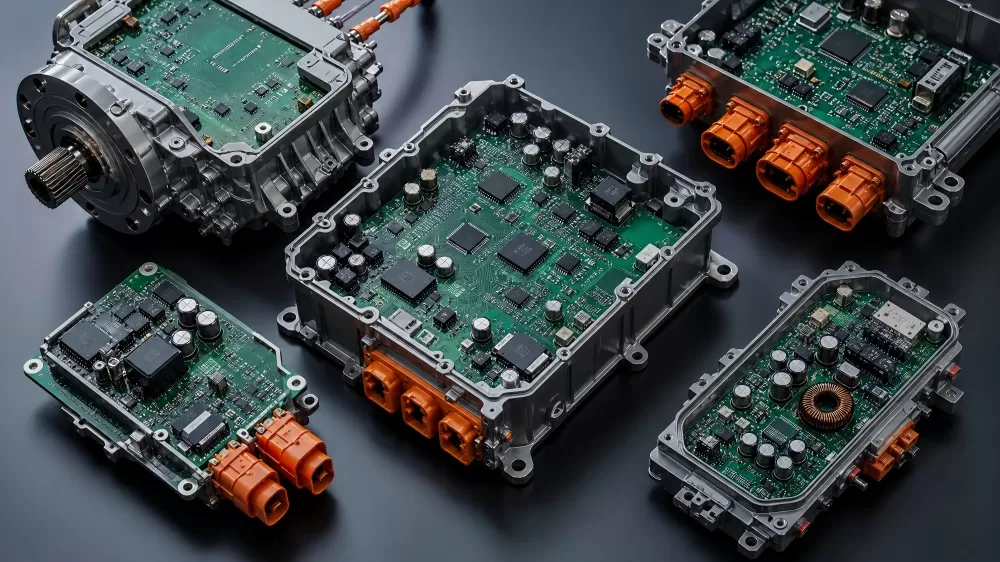

1. The High-Voltage PCB Ecosystem in EVs

The powertrain of a modern electric vehicle is an orchestra of high-voltage electronics, with PCBs serving as both the conductors and the stage. From the 400V (and increasingly 800V) battery pack to the traction motor, every watt of power flows through printed circuit boards that must simultaneously handle kilowatt-level power conversion, precision analog sensing at microvolt resolution, and harsh automotive environmental conditions.

Unlike consumer or even industrial electronics, automotive high-voltage PCBs operate under a unique combination of stresses: -40°C cold starts to 125°C under-hood temperatures, 15G mechanical shock, continuous vibration from 10Hz to 2000Hz, humidity from 0% to 100% condensing, and the ever-present risk of conductive contamination from road salt and chemicals. This article examines the four core PCB types in the EV high-voltage system: battery management system (BMS) boards, motor controller/inverter boards, on-board charger (OBC) boards, and DC/DC converter boards.

2. BMS Master Controller PCB

2.1 BMS Architecture Overview

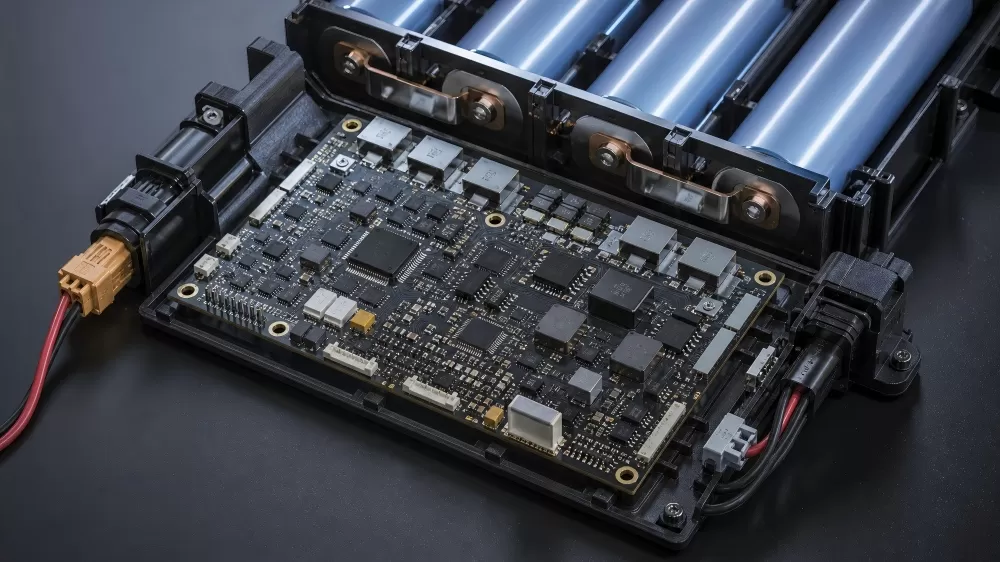

The Battery Management System (BMS) is the brain of the EV battery pack. A modern distributed BMS architecture separates functions into a master controller (central processing and decision-making) and multiple slave modules (per-cell or per-module voltage and temperature monitoring). The master controller PCB integrates:

• Main MCU: Typically an ASIL-D rated automotive microcontroller (Infineon Aurix TC3xx/TC4xx, NXP S32K3, Renesas RH850) with lockstep cores

• State of Charge (SoC) estimation: Running Coulomb counting and Kalman filter algorithms using current, voltage, and temperature data from slave modules

• State of Health (SoH) monitoring: Tracking capacity fade and internal resistance growth over the battery lifecycle

• Communication interfaces: CAN FD (ISO 11898-1) to the vehicle network, isoSPI or daisy-chain UART to slave modules, and Ethernet (100BASE-T1) in newer architectures

2.2 PCB Design Requirements

The BMS master PCB is typically an 8-12 layer board with the following characteristics:

• High-Tg FR-4 or polyimide: Tg > 170°C for under-hood placement

• Isolation: Galvanic isolation (digital isolators or isolated CAN transceivers) between the high-voltage sensing domain and the 12V vehicle domain

• Creepage/clearance: 6-8mm between HV and LV domains on the PCB surface, per IEC 60664-1 for 400V working voltage at pollution degree 2

• EMC robustness: The BMS sits directly on or near the battery pack, exposed to the electromagnetic noise of high-current switching; common-mode chokes on communication lines, ferrite beads on power inputs, and continuous ground planes are essential

• Conformal coating: Acrylic or silicone coating to protect against condensation and contamination

3. BMS Slave / Cell Monitoring PCBs

3.1 Cell Monitoring IC Integration

BMS slave boards contain dedicated cell monitoring ICs (e.g., Analog Devices LTC6811, Texas Instruments BQ79616, NXP MC33771C) that directly measure individual cell voltages with ±1-5mV accuracy. A typical slave board monitors 12-16 cells in series and includes:

• Cell voltage sensing: Differential analog inputs with RC filters for each cell, requiring precision resistors (±0.1%) and capacitors (C0G/NP0 dielectric)

• Temperature sensing: 4-8 NTC thermistor inputs per module for cell surface temperature monitoring

• Passive balancing: MOSFET switches with balancing resistors (typically 33-100Ω) that shunt current around fully-charged cells

3.2 FPC vs. Rigid PCB for Cell Monitoring

Cell monitoring connections are increasingly implemented with flexible printed circuits (FPC) rather than traditional rigid PCBs, due to:

• Thinner profile (0.15-0.3mm vs. 1.6mm) for fitting between cells

• Ability to conform to the cylindrical or prismatic cell geometry

• Elimination of wire harness weight and assembly labor

• Integrated connectors at both ends for tool-less assembly

These FPCs typically use polyimide base material with 1-2 copper layers, with the cell voltage sense traces carefully routed to avoid interference from adjacent switching noise.

4. Motor Controller (Inverter) PCB

4.1 Traction Inverter Architecture

The motor controller/inverter converts the battery's DC voltage to 3-phase AC to drive the traction motor. It is the highest-power PCB in the vehicle, handling 150-400kW peak in modern EVs. The PCB integrates:

• Gate driver ICs: Isolated gate drivers (e.g., Infineon 1EDI, TI UCC217xx) that provide the 15-20V gate drive signals to the IGBT or SiC MOSFET power modules, with 5kV+ galvanic isolation

• Control MCU/DSP: A high-performance 32-bit MCU or DSP (TI C2000, Infineon AURIX, NXP S32E) executing field-oriented control (FOC) algorithms at 10-20kHz PWM frequency

• Current sensing: Hall-effect or shunt-based current sensors on 2 or 3 phases for closed-loop current control

• Resolver/encoder interface: Excitation and sensing circuitry for the motor position sensor

4.2 PCB Requirements for Motor Controllers

The motor controller PCB is typically 6-12 layers with specialized design rules:

4.3 IMS (Insulated Metal Substrate) for Power Stage

The gate driver section of many motor controllers uses Insulated Metal Substrate (IMS) PCB—essentially a single or double copper layer bonded to an aluminum baseplate through a thermally conductive but electrically insulating dielectric. IMS advantages:

• Direct thermal path from the gate driver ICs to the water-cooled cold plate

• Simplified PCB structure (1-2 layers) for the high-voltage gate drive section

• Better coefficient of thermal expansion (CTE) matching to the power module substrate

5. On-Board Charger (OBC) PCB

5.1 OBC Topology

The On-Board Charger converts AC mains power (110-240V AC single-phase, or 400V AC three-phase) to the DC voltage required to charge the battery (typically 400V or 800V DC). A modern 11kW or 22kW OBC implements a two-stage topology:

1. PFC (Power Factor Correction) stage: Boost converter topology that shapes the input current to follow the input voltage sinusoid, achieving PF >0.99 and THD <5%

2. DC/DC stage: Isolated LLC resonant converter or phase-shifted full bridge that provides galvanic isolation and voltage regulation to the battery

5.2 OBC PCB Architecture

The OBC PCB is typically 6-10 layers and divided into distinct functional zones:

• EMI filter zone: Input filtering with X/Y capacitors, common-mode chokes, and differential-mode inductors; careful layout to prevent noise coupling from input to output

• PFC zone: Boost inductor, PFC MOSFET/diode, and current sense resistor with Kelvin connection

• DC/DC zone: Resonant tank (LLC), transformer, synchronous rectifier MOSFETs

• Control zone: Digital power controller (TI C2000, STM32G4, Microchip dsPIC) with isolated gate drive signals distributed via optocouplers or digital isolators

5.3 Critical Layout Considerations

OBC PCB layout is dominated by power loop minimization:

• The power switching loop (input capacitor → switching MOSFET → diode/SR → output capacitor) must enclose the minimum possible area to minimize radiated EMI

• Gate drive traces must be short (<25mm), wide (0.3mm+), and routed over unbroken ground planes

• The Kelvin sense connection for current sensing must connect directly at the shunt resistor pads, not at a via or trace branch

6. DC/DC Converter PCB

6.1 HV-to-LV DC/DC

Every EV requires a DC/DC converter to step down the high-voltage traction battery (400V/800V) to the 12V (or 48V in newer architectures) low-voltage bus that powers lights, infotainment, ECUs, and auxiliary systems. This is a 1-3kW isolated converter with the following PCB requirements:

• Reinforced isolation: Transformer and optocoupler/digital isolator providing 4kV+ isolation between HV and LV domains

• Planar transformer: Many modern designs integrate the isolation transformer directly into the PCB as a planar magnetic component—copper spirals on inner layers forming the primary and secondary windings around a ferrite core

• Creepage slots: Milled slots in the PCB under the transformer and optocouplers to increase creepage distance without increasing component spacing

6.2 Planar Transformer PCB Design

Integrating the power transformer into the PCB offers compelling advantages in cost, consistency, and profile height, but demands specialized PCB design:

• Winding design: Primary and secondary windings implemented as copper spirals on dedicated inner layers, with interleaved construction (P-S-P-S or P-S-S-P) to minimize leakage inductance

• Copper thickness: 3-4 oz on winding layers to handle 20-50A primary current

• Inter-winding capacitance: Controlled by the dielectric thickness between primary and secondary winding layers—typically 0.2-0.5mm for 4kV isolation

• Core window: Precisely routed rectangular cutouts to accept the ferrite core halves (E-core, PQ, or RM shapes)

7. High-Voltage PCB Design Rules

7.1 Creepage and Clearance

For 400V battery systems, the minimum spacing requirements per IEC 60664-1 are:

7.2 Partial Discharge Mitigation

At 800V+, partial discharge (PD) within PCB voids becomes a long-term reliability threat. Mitigation strategies include:

• Avoiding sharp copper edges on high-voltage planes (use rounded corners, 0.5mm+ radius)

• Specifying void-free laminate materials from qualified automotive suppliers

• Using thicker dielectrics between HV planes (0.4mm+ for 800V) to reduce electric field stress

8. Thermal Management for Power PCBs

EV powertrain PCBs contend with both high ambient temperatures and significant self-heating. The motor controller PCB may dissipate 30-50W, concentrated in the gate drivers and current sense resistors. Thermal strategies include:

• Heavy copper (3-6 oz): Reduces I²R heating while improving lateral heat spreading

• IMS/Aluminum core: For the power stage sections where through-PCB thermal conductivity is critical

• Thermal vias: 0.3mm plated through-holes on a 0.8-1.0mm grid under power components, conducting heat to a backside heatsink

• Active cooling: The PCB is typically mounted to a liquid-cooled cold plate shared with the power modules

9. Automotive Reliability & Qualification

Automotive PCB qualification follows the AEC-Q200 (passive components) and IPC-6012DA (automotive addendum) standards. Key test requirements:

• Thermal shock: -40°C to +125°C, 1000 cycles per IPC-TM-650 2.6.7

• CAF (Conductive Anodic Filament) resistance: 1000 hours at 85°C/85%RH with bias voltage per IPC-TM-650 2.6.25

• IST (Interconnect Stress Test): Cycled from ambient to 150°C+ to validate plated through-hole reliability

• SIR (Surface Insulation Resistance): After condensing humidity exposure

10. Future: 800V Systems & SiC Integration

The transition from 400V to 800V battery systems halves the current for a given power level, reducing I²R losses and enabling faster charging. However, 800V doubles the creepage/clearance requirements, increasing PCB area. This is driving:

• Wider adoption of SiC MOSFETs: SiC enables higher switching frequencies (20-50kHz vs. 8-12kHz for IGBTs), reducing the size of passive components—but requires PCBs that can handle even faster dV/dt (100 kV/μs+)

• Integrated power modules: Combining gate drivers, current sensing, and protection on a single PCB or ceramic substrate within the power module housing

• Higher density interconnects: More extensive use of HDI and embedded component technologies to fit the increased isolation requirements into the same or smaller volume

11. Conclusion

The PCBs in an EV's high-voltage powertrain are unlike any other electronics—they must combine kilowatt power handling with millivolt precision sensing, all while meeting automotive-grade reliability in one of the harshest operating environments imaginable. From the BMS boards that protect the battery to the inverter PCB that controls the motor, each requires specialized materials, layout techniques, and qualification processes that go far beyond conventional PCB design.

As the industry moves toward 800V architectures and wide-bandgap semiconductors, the demands on these PCBs will only intensify. Superb Automation brings deep experience in automotive-grade heavy copper PCB fabrication, high-voltage isolation design, and planar magnetic integration to every EV powertrain project.
