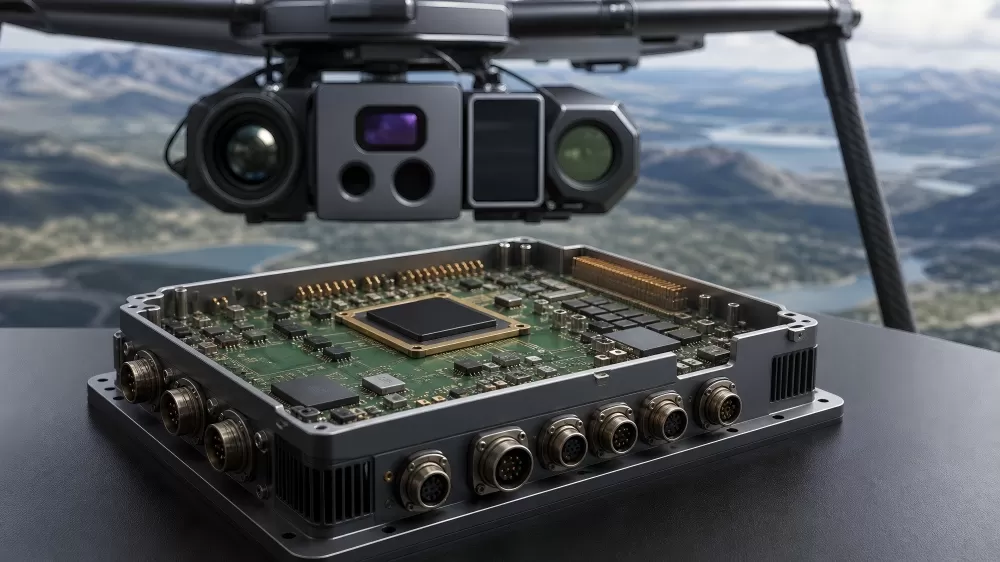

The military maxim "sensors are the mission" applies equally to UAVs. Whether mapping agricultural fields with multispectral cameras, inspecting power lines with thermal imagers, or tracking hostile forces with SAR radar, the sensor payload defines the UAV's purpose. The embedded electronics that interface with these sensors — capturing raw data, performing real-time processing, fusing information from multiple sources, and packaging the results for downlink — constitute the most technically diverse PCB designs in the UAV ecosystem. This article covers EO/IR cameras, LiDAR, SAR radar, hyperspectral imagers, atmospheric sensors, and the embedded processing platforms that fuse them.

1. Electro-Optical / Infrared (EO/IR) Sensor Interface PCB

EO/IR sensor balls (gimbaled payloads with visible and thermal cameras) are the most common UAV payload for ISR missions. These systems integrate: a visible-light camera (HD to 8K resolution), a mid-wave or long-wave infrared (MWIR/LWIR) thermal camera, a laser range-finder (LRF), and a laser designator — all on a stabilized gimbal.

1.1 Thermal Camera (Microbolometer) Interface

Uncooled microbolometer thermal cameras (e.g., FLIR Boson, 640×512, 12 µm pixel pitch) output digital video over MIPI CSI-2 or parallel CMOS at 60 fps. The interface PCB must handle the microbolometer's unique requirements: a highly stable bias voltage (typically 2.5–5.0 V, with <100 µV RMS noise and <50 ppm/°C temperature coefficient, as bias variation directly modulates pixel sensitivity), a thermoelectric cooler (TEC) driver if the camera requires temperature stabilization (a TEC controller generating ±2–5 A with <1% ripple to avoid introducing thermal noise into the sensor), and non-uniformity correction (NUC) processing — either performed on the camera module itself or in an FPGA on the interface PCB (a 640×512 array with 14-bit pixels generates 450 MB/s, requiring a high-bandwidth memory interface). Superb Tech's thermal camera interface PCBs provide <50 µV RMS bias noise and precision TEC control for stable, low-noise thermal imaging.

1.2 Laser Range-Finder and Designator Interface

A laser range-finder measures distance by timing the round-trip of a short laser pulse (typically 1.06 µm or 1.55 µm wavelength, 5–20 ns pulse width, 10–100 mJ energy). The LRF interface PCB includes: a laser diode driver (a capacitor discharge circuit that delivers 50–200 A peak current in <10 ns, using a low-ESL capacitor bank and a MOSFET or avalanche transistor switch), a sensitive APD (Avalanche Photo-Diode) receiver with a transimpedance amplifier (TIA) having >100 MHz bandwidth and <1 pA/√Hz input-referred noise, and a Time-to-Digital Converter (TDC) with <50 ps resolution (7.5 mm range resolution). The APD receiver circuit must be laid out with extreme care: the TIA's feedback resistor (typically 10–100 kΩ) must be placed within 2 mm of the APD to minimize parasitic capacitance, and the entire receiver front-end must be shielded from the high-current laser driver (which generates 50 A pulses with <10 ns rise times — a formidable EMI source). The laser driver and receiver are typically on separate PCBs or separated by a grounded metal shield on the same PCB.

2. UAV LiDAR Sensor Interface PCB

LiDAR (Light Detection and Ranging) provides high-resolution 3D point clouds for mapping, surveying, and obstacle detection. UAV LiDAR systems range from compact 360° mechanical scanners (e.g., Ouster OS1, Velodyne Puck) to solid-state MEMS or OPA (Optical Phased Array) scanners.

2.1 LiDAR Data Acquisition and Processing PCB

A UAV LiDAR payload generates enormous data volumes: a 128-channel LiDAR at 20 Hz scan rate produces 2.6 million points per second, each with XYZ coordinates, intensity, and timestamp — approximately 50 MB/s of raw data. The data acquisition PCB must: interface with the LiDAR sensor (typically via Gigabit Ethernet or a proprietary high-speed serial link), time-stamp each point with <1 µs accuracy (using a GNSS-disciplined clock or the PPS signal from the UAV's GNSS receiver), apply boresight calibration (correcting for the angular offset between the LiDAR's coordinate frame and the UAV's IMU), and store or downlink the data (local NVMe SSD for post-mission processing, or real-time downlink for tactical applications). The PCB integrates a high-performance embedded processor (Intel Core i7 or NVIDIA Jetson) with a PCIe Gen3/4 ×4 NVMe SSD (write speeds >2 GB/s required to keep up with the LiDAR data rate) and a 10 Gigabit Ethernet interface for the sensor connection. Superb Tech's LiDAR processing PCBs support the data throughput and precision timing required for survey-grade mapping (<5 cm absolute accuracy).

2.2 LiDAR-IMU-GNSS Integration for Direct Georeferencing

For survey-grade mapping, the LiDAR data must be directly georeferenced — each laser return's position in a global coordinate frame is computed from the UAV's position (GNSS), attitude (IMU), and the LiDAR's scan angle and range. This requires tight time synchronization: the GNSS receiver's PPS (Pulse Per Second) signal is used to discipline all sensor clocks, with the time offset between the LiDAR scan and the IMU measurement known to <10 µs (for a UAV flying at 10 m/s, a 10 µs timing error translates to a 0.1 mm position error — negligible, but a 1 ms error translates to 10 mm, which is significant). The PPS distribution PCB uses low-skew clock buffers to distribute the PPS signal to all sensors, with all traces length-matched to <10 mm (approximately 50 ps skew in FR-4) and terminated with 50 Ω to prevent reflections.

3. UAV SAR (Synthetic Aperture Radar) Payload PCB

SAR radar provides all-weather, day/night imaging capability that EO/IR sensors cannot match. UAV SAR systems — typically operating at X-band (8–12 GHz) or Ku-band (12–18 GHz) — achieve sub-meter resolution from standoff ranges of 10–50 km, with the antenna integrated into the UAV's wing or fuselage pod.

3.1 Compact SAR Radar Electronics PCB

A UAV SAR payload consists of: a waveform generator (DDS or arbitrary waveform generator producing linear FM chirps with 100–500 MHz bandwidth), a coherent transmitter (typically 10–100 W peak power using GaN MMIC PAs), a coherent receiver (dual-channel for along-track interferometry or polarimetric SAR), and a SAR processor (FPGA or GPU performing range-Doppler or back-projection image formation). The entire SAR electronics must fit within a volume of approximately 200 mm × 150 mm × 80 mm and weigh <5 kg — severe SWaP (Size, Weight, and Power) constraints that drive highly integrated, multi-layer PCB design. The RF sections use Rogers 4350B or Megtron 7 laminates, while the digital sections use standard FR-4, bonded together in a hybrid stackup. Superb Tech's hybrid lamination capability combines RF and digital layers in a single PCB, eliminating the connectors and cables that add weight and reduce reliability.

3.2 Motion Compensation and Autofocus Processing

SAR image quality depends critically on accurate knowledge of the antenna's trajectory during the synthetic aperture (typically 1–10 seconds). The UAV's motion — deviations from the ideal straight-line path due to turbulence and autopilot corrections — must be measured by the IMU/GNSS and compensated in the SAR processor. The motion compensation PCB interfaces with a tactical-grade IMU (gyro bias <1°/hr, accelerometer bias <1 mg) sampling at 200–400 Hz, and a dual-frequency GNSS receiver providing centimeter-level position accuracy through post-processed kinematic (PPK) techniques. The IMU data is streamed to the SAR processor over a deterministic interface (typically SPI at 50 MHz or a dedicated LVDS link) with <100 µs latency, enabling real-time motion compensation during the SAR data collection. Superb Tech's motion compensation PCBs achieve the low-latency sensor data transfer required for high-resolution SAR imaging from small UAV platforms.

4. Hyperspectral and Multispectral Imager PCB

Hyperspectral imagers capture hundreds of narrow spectral bands (1–10 nm bandwidth) across the visible, near-infrared, and shortwave-infrared spectrum, enabling material identification and vegetation analysis. UAV hyperspectral payloads use either push-broom (line-scan) sensors or snapshot (frame-based) sensors with tunable filters.

4.1 Push-Broom Hyperspectral Imager Interface

A push-broom hyperspectral imager uses a 2D sensor array where one dimension is spatial (across-track, typically 1,600–2,000 pixels) and the other dimension is spectral (typically 200–400 bands). The sensor is read out line-by-line as the UAV flies forward (the UAV's motion provides the along-track dimension). The interface PCB must: receive the high-speed digital video (typically Camera Link, CoaXPress, or 10 GigE Vision, with data rates of 200–500 MB/s), apply radiometric calibration (dark current subtraction, pixel non-uniformity correction, spectral smile and keystone correction), and synchronize the line readout with the UAV's ground speed (provided by the GNSS/IMU) to achieve square pixels on the ground. The synchronization uses a pulse-per-meter signal derived from the UAV's ground speed: for a desired 0.1 m ground sample distance at 30 m/s flight speed, the line trigger rate is 300 Hz, and the trigger must have <100 µs jitter to maintain uniform spatial sampling. Superb Tech's hyperspectral interface PCBs achieve the trigger precision needed for high-quality push-broom imaging.

5. Multi-Sensor Fusion and Payload Management

Modern ISR UAVs carry multiple sensors simultaneously — EO, IR, LiDAR, SAR, and SIGINT — and must fuse the data from these disparate sources into a coherent tactical picture. The payload management computer (PMC) orchestrates the sensors, performs sensor fusion, and manages the downlink bandwidth.

5.1 Payload Management Computer PCB

The PMC is typically a ruggedized single-board computer (SBC) — e.g., a 3U VPX or custom form-factor board — with: a multi-core CPU (Intel Xeon D or AMD Ryzen Embedded), an FPGA for sensor interface management and low-latency pre-processing, a GPU (NVIDIA RTX A2000 or similar) for AI-based sensor fusion, and high-bandwidth I/O (multiple 10 GigE ports, PCIe Gen4 switches, and NVMe storage). The PMC PCB must handle aggregate data throughput of 1–10 Gbps from multiple sensors while maintaining deterministic latency for real-time fusion. The PCB design uses: a 16–22 layer stackup with separate routing layers for each high-speed interface (to prevent crosstalk), precision backdrilling on all high-speed vias to remove stubs (which cause reflections at >5 Gbps), and advanced power delivery with >20 independent voltage rails. Superb Tech's PMC PCB manufacturing supports the high layer count, tight registration, and signal integrity required for multi-sensor fusion avionics.

5.2 Sensor Health Monitoring and Fault Tolerance

The PMC continuously monitors each sensor's health — power consumption, temperature, data quality (valid timestamps, non-stuck pixels, within-calibration radiometric values) — and reports faults to the UAV's health management system. If a sensor fails (e.g., the IR camera's cryocooler fails, causing the detector to warm up and lose sensitivity), the PMC automatically reconfigures the mission: degrading gracefully by relying on the remaining sensors (e.g., switching from multi-spectral to visible-only imaging) or recommending mission abort. The health monitoring PCB includes dedicated sensor telemetry interfaces (I²C or SPI buses to sensor diagnostic registers) that are independent of the main data path, ensuring that fault detection operates even when the primary data link is saturated or failed. Superb Tech manufactures the health monitoring PCBs to IPC-6012 Class 3 standards, with 100% electrical test and environmental stress screening for mission-critical reliability.
