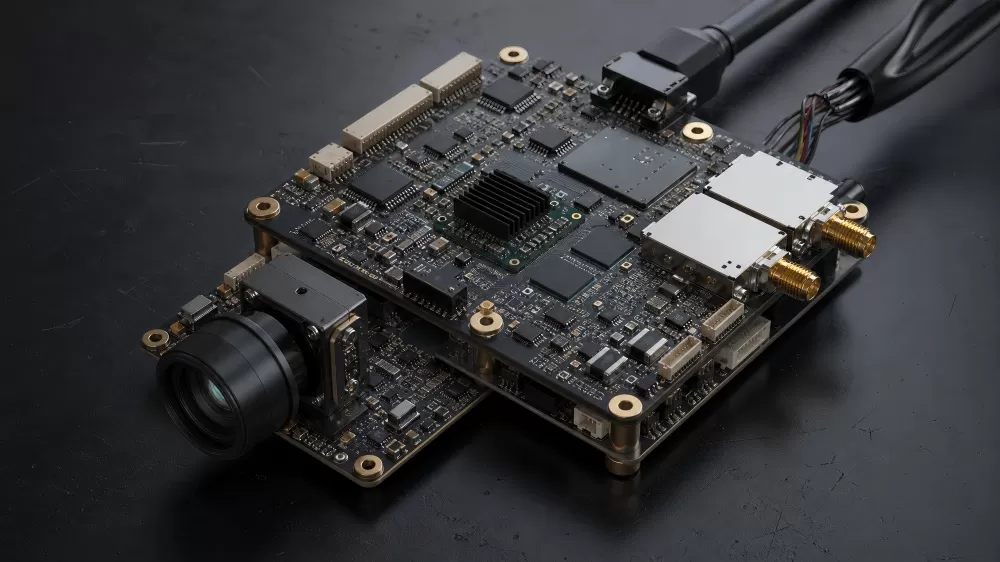

Video is the primary mission payload for the vast majority of UAVs — from a consumer drone capturing vacation footage to a military ISR (Intelligence, Surveillance, Reconnaissance) platform tracking targets in real time. The video transmission and processing subsystem must capture high-resolution imagery from one or more cameras, encode it with minimal latency, transmit it over bandwidth-constrained wireless links, and increasingly, apply AI-based computer vision algorithms for object detection, tracking, and classification. This article covers the complete UAV video chain PCB design: camera interfaces, video encoding, low-latency streaming, computer vision accelerators, and gimbal control.

1. Camera Interface PCB Design

Modern UAV cameras range from compact MIPI-based sensors (e.g., Sony IMX477, 12 MP) to professional full-frame cameras (e.g., Sony α7 series) to multi-spectral and thermal imaging payloads. The camera interface PCB must capture the video data stream — typically 1–10 Gbps for 4K video — and route it to the video processor or encoder with minimal latency and maximum signal integrity.

1.1 MIPI CSI-2 Interface Routing

MIPI CSI-2 (Camera Serial Interface) is the dominant interface for compact drone cameras, using 1–4 differential data lanes at 1.5–2.5 Gbps per lane plus a differential clock lane. A 4-lane MIPI interface can carry 4K video at 30 fps (approximately 6 Gbps). The PCB routing of MIPI lanes demands: controlled 100 Ω differential impedance (±10%), intra-pair length matching within <1 mm (approximately 5 ps skew), and inter-pair length matching within <5 mm to maintain the MIPI data-to-clock relationship. The traces between the camera connector (typically a 15-pin or 22-pin FPC connector) and the processor's MIPI input must be as short as possible (<50 mm) to minimize insertion loss; at 2.5 Gbps, the Nyquist frequency is 1.25 GHz, and insertion loss increases approximately 0.1 dB/cm on standard FR-4. Superb Tech's controlled-impedance differential pair routing achieves the signal integrity required for 4-lane MIPI CSI-2 at full 2.5 Gbps rate.

1.2 Multi-Camera Synchronization

Advanced UAVs employ multiple cameras — stereo pairs for depth sensing, multi-spectral arrays for agriculture, or 360° coverage for situational awareness — that must be synchronized to within <1 ms for accurate multi-view or multi-spectral analysis. The synchronization PCB distributes a common trigger signal (typically a 3.3 V LVCMOS pulse or an I²C command) to all cameras, with the trigger traces length-matched to <10 mm to ensure simultaneous frame capture. For rolling-shutter sensors (common in CMOS cameras), the synchronization must also account for the sensor's line-by-line readout: the trigger must be timed so that all sensors' exposure windows overlap, which requires knowledge of each sensor's readout timing (typically available from the sensor datasheet and verified by measurement).

2. Video Encoding and Compression PCB

Raw video data rates far exceed the capacity of UAV downlinks — uncompressed 4K 30 fps video requires approximately 6 Gbps (8-bit, 4:2:0), while a typical UAV video downlink provides 5–50 Mbps. Video compression ratios of 100:1 to 1,000:1 are achieved through H.264/H.265 encoding, implemented either in a dedicated encoder SoC or in the main applications processor's hardware codec block.

2.1 Hardware Video Encoder SoC Integration

Dedicated encoder SoCs (e.g., Ambarella CV5, HiSilicon Hi3559A) provide H.265 encoding of 4K 60 fps video with latency as low as 50 ms (glass-to-glass). The encoder PCB requires: a stable, low-jitter clock source for the pixel clock (typically 148.5 MHz for 4K30, with <50 ps RMS jitter to avoid encoding artifacts), high-bandwidth DDR4 memory (4–8 GB, 64-bit wide at 3200 MT/s, providing >25 GB/s bandwidth for frame buffer and reference frames), and a network interface (typically Gigabit Ethernet or USB 3.0) to output the compressed stream to the video transmitter. The DDR4 interface routing demands tight length matching (byte lanes matched to <5 mil, address/command to clock matched to <10 mil) and controlled impedance (40 Ω single-ended for data, 80 Ω differential for clocks). Superb Tech's high-speed memory interface fabrication supports DDR4 at 3200 MT/s with validated signal integrity on all encoder PCBs.

2.2 Low-Latency Encoding Pipeline

For FPV (First Person View) racing drones and remote piloting, video latency must be <30 ms end-to-end — from sensor exposure to display on the pilot's goggles. This latency budget is consumed by: sensor readout (5–15 ms for rolling shutter sensors), encoding (5–15 ms for H.264/H.265 I-frame-only encoding), transmission (1–5 ms for the RF link), and decoding/display (5–10 ms). The encoder PCB must minimize its contribution by: using a global-shutter sensor (eliminating the rolling-shutter readout delay), encoding with only I-frames (no inter-frame prediction, which requires buffering future frames), and minimizing the encode buffer depth (typically 1–3 frames, corresponding to 16–50 ms at 60 fps). The encoder-to-transmitter interface must use the lowest-latency protocol — typically raw UDP over Ethernet or a dedicated serial interface — avoiding the buffering inherent in TCP.

3. UAV Video Transmission (VTX) PCB

The video transmitter (VTX) modulates the compressed video stream onto an RF carrier for transmission to the ground station. VTX systems range from analog FM transmitters (legacy FPV, 5.8 GHz, 25–1000 mW) to digital OFDM systems (DJI O3/O4, Walksnail Avatar, HDZero) achieving 1080p/4K quality with 25–50 Mbps throughput at ranges of 5–15 km.

3.1 Digital OFDM Video Transmitter PCB

A digital video transmitter uses an OFDM (Orthogonal Frequency Division Multiplexing) waveform with 64–1024 subcarriers, QPSK to 64-QAM modulation, and adaptive bit-rate based on link quality (measured via RSSI and packet error rate feedback from the ground receiver). The VTX PCB integrates: an applications processor or FPGA running the OFDM baseband, a high-speed DAC (typically 200–400 MSPS, 12–14 bits) generating the OFDM waveform, an I/Q modulator up-converting to 5.8 GHz, a PA delivering 25–30 dBm (300–1000 mW) output power, and an antenna switch or diplexer for dual-antenna diversity. The PCB's RF section — particularly the PA and its output matching — must maintain linearity across the OFDM signal's 10–20 MHz bandwidth; OFDM has a high Peak-to-Average Power Ratio (PAPR, typically 8–12 dB), and PA nonlinearity creates spectral regrowth that violates emission masks and degrades the EVM. Superb Tech's VTX PCBs use linear GaAs or SiGe PAs with sufficient back-off (typically 3–6 dB from the 1 dB compression point) to maintain EVM < -25 dB for 64-QAM operation.

3.2 Antenna Integration and Diversity

UAV video transmitters typically employ 2–4 antennas for MIMO and diversity, improving link reliability against airframe shadowing and multipath. The VTX PCB incorporates the antenna matching networks, antenna switches, and in some designs, the antenna elements themselves (PCB patch antennas for compact installations). The antenna matching must maintain VSWR < 1.5:1 across the operating band (typically 5.725–5.850 GHz for 5.8 GHz VTX) despite the detuning effect of the UAV's carbon fiber or plastic airframe in close proximity. Superb Tech's antenna design team uses 3D EM simulation (HFSS or CST) of the antenna-in-situ (antenna mounted on the UAV, with the airframe modeled) to optimize the matching network for installed performance, and validates the design with OTA measurements on the assembled UAV.

4. Computer Vision and AI Processing PCB

Onboard computer vision — object detection, tracking, obstacle avoidance, and autonomous navigation — is rapidly becoming a standard feature on UAVs. The computational demands of real-time vision (typically 10–100 TOPS for multi-stream 4K processing) require dedicated AI accelerators: NVIDIA Jetson Orin (up to 275 TOPS), Qualcomm RB5 (15 TOPS), or Hailo-8 (26 TOPS), integrated onto the vision processing PCB.

4.1 AI Accelerator PCB Integration

The NVIDIA Jetson Orin module — a 100 mm × 87 mm SOM (System on Module) with a 2,048-core Ampere GPU, 12-core ARM Cortex-A78AE CPU, and 32 GB LPDDR5 — is the de facto standard for high-performance UAV vision processing. The carrier board PCB that hosts the Jetson module must provide: the high-density SOM connector (a 314-pin MXM-style connector with 0.5 mm pitch, requiring precise alignment and coplanarity for reliable contact), high-speed I/O interfaces (MIPI CSI ×8 lanes for up to 6 cameras, PCIe Gen4 ×8 for NVMe storage or additional accelerators, 10 Gbps Ethernet for video output), and power delivery (5–20 V input, with the module consuming 15–60 W depending on workload). The carrier board's power integrity is critical: the GPU core voltage (typically 0.65–0.85 V, 20–50 A) must have <1% DC drop and <10 mVpp ripple to prevent GPU computation errors. Superb Tech's Jetson carrier board PCBs use a 10–14 layer HDI stackup with 2 oz copper on power planes and a multi-phase VRM (4–6 phases) for the GPU core rail, achieving >90% efficiency and <5 mV ripple.

4.2 Sensor-to-AI Pipeline Latency

For real-time obstacle avoidance (critical for autonomous UAV operation at speeds >15 m/s), the latency from camera exposure to control output must be <50 ms. The vision pipeline latency budget: camera exposure (1–5 ms), sensor readout (5–10 ms), MIPI transfer (0.1–1 ms), GPU memory transfer (1–2 ms), AI inference (5–15 ms for object detection with YOLOv8 or similar), decision logic (1–2 ms), and actuator command (1–2 ms). The PCB must minimize the data transfer latencies by: using DMA (Direct Memory Access) for all sensor data transfers (avoiding CPU-mediated copies), placing the camera and GPU physically close on the PCB (<100 mm trace length for MIPI lanes), and using a high-bandwidth, low-latency system memory (LPDDR5 at 6,400 MT/s with <50 ns read latency). Superb Tech's vision processing PCBs are optimized for the end-to-end latency requirements of autonomous UAV operation.

5. Gimbal Control System PCB

Camera gimbals stabilize the payload against UAV motion and vibration, and provide pointing control for the camera operator. A 3-axis brushless gimbal uses three direct-drive motors (yaw, pitch, roll) with magnetic encoders for position feedback, controlled by a dedicated gimbal controller PCB running a PID (Proportional-Integral-Derivative) stabilization loop at 1–8 kHz.

5.1 Gimbal Motor Drive and Position Sensing

Each gimbal motor is a 3-phase brushless DC motor (typically 12–24 poles) driven by a 3-phase MOSFET inverter (6 MOSFETs per motor organized as 3 half-bridges). The motor drive PCB uses: low-R_DS(on) MOSFETs (<10 mΩ) to minimize conduction losses, gate drivers with 1–2 A peak drive current for fast switching (minimizing switching losses), and current sensing on each phase (typically a 1–5 mΩ shunt resistor with a current-sense amplifier, providing <1% current measurement accuracy for precise torque control). The position feedback uses magnetic encoders — typically an AS5048A or TLE5012B Hall-effect sensor IC measuring the angle of a diametrically magnetized magnet mounted on the motor shaft, with 14-bit (0.022°) resolution. The encoder IC must be placed within 1–2 mm of the magnet surface, and the PCB must provide a non-magnetic mounting area (no ferrous components or high-current traces that could distort the magnetic field). Superb Tech's gimbal controller PCBs achieve 0.01° stabilization accuracy through precision encoder placement and low-noise motor drive design.

5.2 Gimbal-to-Flight Controller Communication

The gimbal controller communicates with the flight controller via a high-speed serial interface (typically CAN bus at 1 Mbps, or UART at 921.6 kbps) to receive the UAV's attitude (roll, pitch, yaw) from the flight controller's IMU. The gimbal uses this attitude data for feed-forward compensation — predicting the UAV's motion and preemptively counter-rotating the motors — reducing the stabilization error from ±0.5° (feedback-only) to ±0.05° (feed-forward + feedback). The communication link must have deterministic latency (<1 ms) and <0.1% packet error rate; CAN bus is preferred for its built-in error detection and deterministic arbitration. The CAN bus transceiver PCB must include: common-mode chokes on the CANH/CANL lines to reject motor PWM noise, TVS diodes for ESD protection, and 120 Ω termination resistors placed at the physical ends of the bus (not at every node).
