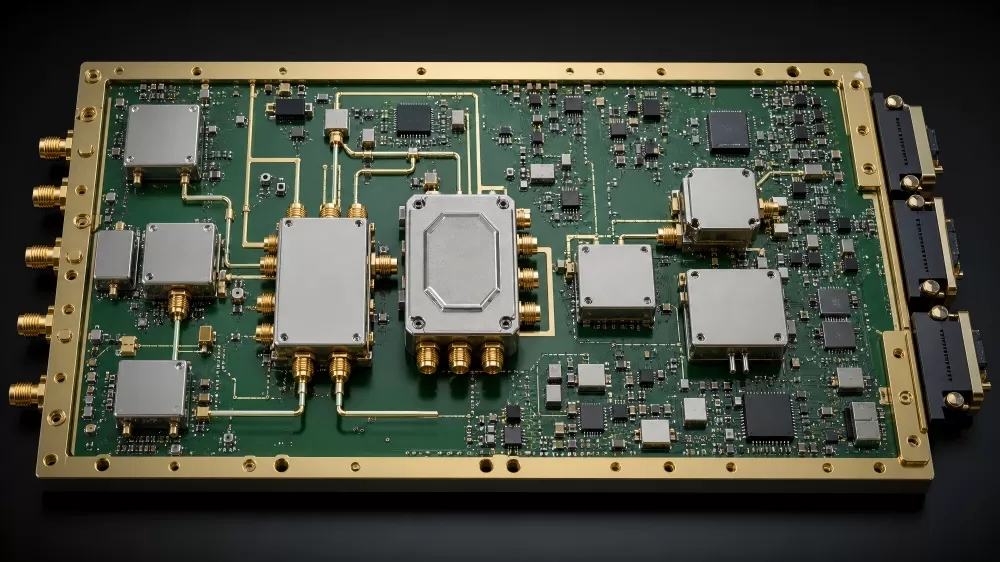

The radar RF front-end and signal chain is where the laws of physics meet the demands of defense electronics. A single radar receiver must detect target returns as weak as -130 dBm (picowatt level) in the presence of the transmitter's megawatt-level pulses, all while maintaining picosecond-level timing precision for accurate range measurement. This article examines the PCB design considerations for the complete radar analog signal chain: the high-power transmitter, the transmit/receive duplexing, the ultra-low-noise receiver, the frequency conversion stages, and the analog-to-digital interface.

1. Radar Transmitter PCB: High-Power RF Generation

The radar transmitter generates the high-power RF pulses that illuminate targets. Depending on the radar application, transmitter architectures range from solid-state GaN amplifier chains (typical for modern AESA) to vacuum-tube-based final stages (magnetron, klystron, or traveling-wave tube for legacy high-power systems).

1.1 Solid-State Transmitter Chain PCB

A solid-state transmitter chain cascades multiple amplifier stages: a driver amplifier (+10 to +20 dBm), a pre-driver (+20 to +30 dBm), and a final power amplifier (+40 to +60 dBm). Each stage requires its own bias network, inter-stage matching, and power supply decoupling — all implemented on the transmitter PCB. The inter-stage matching networks must be designed for power efficiency: a 0.5 dB mismatch loss in the inter-stage matching represents 10% of the available power being dissipated as heat rather than delivered to the next stage. Superb Tech's controlled-impedance fabrication ensures that every matching network achieves its designed impedance within ±5%, verified by TDR coupon testing on every panel.

1.2 High-Power PCB Materials and Thermal Design

At power levels above 100 W, standard PCB materials reach their thermal limits. The RF current density in the output matching network traces causes ohmic heating: a 50 Ω microstrip line carrying 100 W has an RMS current of 1.4 A; with 1 oz copper and a 3 mm trace width, the I²R loss is approximately 0.05 W/cm, which is manageable. But at 1,000 W, the current rises to 4.5 A and the loss to 0.5 W/cm — sufficient to cause delamination in FR-4. High-power transmitter PCBs use:

• Thick copper: 3–6 oz (105–210 µm) on RF layers to reduce ohmic loss.

• Ceramic-filled PTFE substrates: Rogers TMM laminates (thermal conductivity 0.7–1.4 W/m·K) for the RF layers, with higher thermal endurance (Tg > 200°C).

• Aluminum-backed or metal-core construction: A thick aluminum plate (1.5–3 mm) bonded to the bottom of the PCB, providing a low-resistance thermal path to the heatsink. The RF dielectric layer between the circuit and the aluminum base is typically 0.25–0.76 mm of thermally conductive PTFE.

• Active cooling integration: For the highest power densities, the PCB is mounted on a liquid cold plate with the coolant flowing through channels directly beneath the high-power amplifier stages.

1.3 Pulse Modulator and Power Supply PCB

Pulsed radar transmitters require a modulator that switches the PA bias on and off with precise timing — typical pulse widths of 0.1–100 µs, rise/fall times <50 ns, and pulse repetition frequencies (PRF) of 1–100 kHz. The modulator PCB uses high-speed MOSFET or GaN FET switches capable of handling the PA's drain voltage (typically 28–50 V) and current (5–50 A) with sub-nanosecond switching jitter. The gate drive circuit must deliver 5–10 A of peak current to charge the FET gate capacitance (typically 1–5 nF) within 10–20 ns, requiring a low-inductance layout with the gate driver IC placed within 5 mm of the FET. Superb Tech's thick-copper capability allows the high-current drain traces to be routed directly on the PCB, eliminating the need for external bus bars or wiring.

2. Radar Duplexer and T/R Isolation PCB

The duplexer protects the sensitive receiver from the high-power transmitter while routing received echoes to the LNA. In radar, the duplexer must handle peak powers of kilowatts to megawatts while recovering to receive mode within microseconds.

2.1 Circulator and Limiter Integration

The ferrite circulator — a three-port non-reciprocal device — routes the transmitter power to the antenna and the received signal from the antenna to the receiver, with typically 0.3–0.5 dB insertion loss and 20–25 dB isolation. The circulator is typically a discrete component mounted on the PCB, but its integration demands careful attention to the PCB-to-circulator transition. The circulator's ports are typically 50 Ω microstrip or stripline interfaces that must be connected to the PCB with minimal impedance discontinuity. A poorly designed transition can degrade the circulator's isolation by 5–10 dB, allowing enough transmitter leakage to damage the receiver. The transition uses a tapered or stepped impedance transformer to match the circulator's connector or tab to the PCB transmission line, with EM simulation of the complete transition structure.

Even with a circulator providing 20 dB of isolation, a 1 kW (+60 dBm) transmitter leaks +40 dBm into the receiver path during transmit — far exceeding the LNA's damage threshold (typically +10 to +20 dBm). A receiver protector (limiter) — typically a PIN diode or Schottky diode limiter — is placed between the circulator and the LNA to clamp the leakage power. The limiter must respond within <10 ns (before the transmitter pulse reaches full power) and recover within <1 µs after the pulse ends (to avoid blocking nearby target returns). The PCB trace between the limiter and LNA must be as short as possible (<5 mm) because any transmission line between the limiter and LNA adds group delay that delays the limited signal's arrival at the LNA, reducing the limiter's effective protection.

3. Radar Receiver PCB: Low-Noise Design

The radar receiver must amplify the microvolt-level signals from the antenna while adding minimal noise — every 0.1 dB of noise figure improvement translates directly to extended detection range. A 3 dB reduction in noise figure doubles the radar's detection range for a given target RCS (Radar Cross Section).

3.1 LNA and Noise Figure Optimization

The first-stage LNA sets the receiver's noise figure according to the Friis formula: NF_total = NF₁ + (NF₂ - 1)/G₁ + ... . For a typical X-band radar receiver with LNA gain of 20 dB and noise figure of 1.5 dB, the second stage (typically a mixer with 8 dB NF) contributes only 0.06 dB to the total noise figure. Thus, the LNA's PCB implementation is disproportionately critical. The input matching network between the antenna port and the LNA's first transistor must achieve a noise match (Γ_opt) rather than a conjugate power match — the optimum source reflection coefficient for minimum noise figure is typically different from the conjugate of the transistor's S11. The matching network must be physically compact (within 5 mm of the transistor) to minimize pre-LNA loss; even 0.1 dB of loss before the LNA directly adds to the system noise figure. Superb Tech's fine-line capability enables compact matching networks with minimal parasitic trace length.

3.2 Spurious-Free Dynamic Range and Linearity

Radar receivers must maintain linearity in the presence of strong clutter returns and intentional or unintentional interference. The receiver's Spurious-Free Dynamic Range (SFDR) — typically 80–100 dB for a high-performance radar — demands that intermodulation products be kept below the noise floor. Third-order intermodulation (IM3) is particularly problematic because two strong signals at f₁ and f₂ create products at 2f₁ - f₂ and 2f₂ - f₁ that can fall within the receiver's passband. The IM3 level is determined by the receiver's Input Third-Order Intercept Point (IIP3), which for the LNA is typically +5 to +15 dBm. PCB layout affects IIP3 through: ground inductance (which creates common-mode feedback that enhances even-order distortion that can mix to odd-order products), power supply impedance (which modulates the amplifier bias with the signal envelope), and parasitic coupling between stages (which creates unintended feedback paths). Star-grounding, ferrite bead isolation on bias lines, and physical separation between stages are the standard mitigation techniques.

4. Frequency Conversion PCB: Mixers and LO Chain

Radar receivers typically employ superheterodyne architectures with one or two frequency conversions, translating the RF signal to a lower intermediate frequency (IF) for digitization.

4.1 Mixer Selection and PCB Layout

Radar mixers must handle high input power (the LNA output may be -30 to -10 dBm after 20–30 dB of gain) with low conversion loss (<7 dB) and high linearity (IIP3 > +20 dBm for the mixer). Double-balanced diode ring mixers are common due to their high IP3 and good port-to-port isolation. The mixer PCB must provide: a well-matched LO port (the LO power, typically +10 to +17 dBm, directly affects conversion loss), low-inductance grounding for the diode ring (a single ground via adds 0.3–0.5 nH of common-mode inductance that degrades balance and isolation), and symmetric layout of the IF output traces to maintain the balun's common-mode rejection. LO-to-RF isolation is critical: LO leakage to the RF port appears at the antenna and can violate emission regulations; >40 dB of isolation is typically required, achieved through physical separation of LO and RF routing and grounded guard traces.

4.2 Local Oscillator Distribution PCB

In multi-channel radar receivers (e.g., monopulse or digital beamforming), a single LO source must be distributed to multiple mixers with precise phase matching. For an X-band LO at 10 GHz distributed to 16 mixers, the phase matching requirement of ±2° translates to ±0.08 mm of electrical length. The LO distribution network uses a corporate feed of Wilkinson dividers (identical to the BFN but at the much lower LO power level), and the final LO drive trace to each mixer must be phase-matched using serpentine delay lines. Because the LO signal is CW (not pulsed), the isolation between LO distribution traces is less critical than in the BFN, but any coupling still creates phase errors. Superb Tech's VNA-verified LO distribution PCBs achieve phase matching of ±1° across 16 channels at 10 GHz.

5. Analog-to-Digital Interface: The IF-to-Bits Boundary

The final stage of the radar signal chain is the analog-to-digital converter (ADC), which digitizes the IF signal for subsequent digital processing. Modern radar ADCs sample at 100 MSPS to 10 GSPS with 12–16 bit resolution, requiring careful PCB design to preserve the analog signal quality at the ADC input.

5.1 ADC Driver and Anti-Aliasing Filter

The ADC driver — a differential amplifier that converts the single-ended IF signal to the ADC's differential input — must provide adequate bandwidth, low noise, and low distortion. For a 14-bit ADC with 2 Vpp full-scale input, the LSB is 122 µV, and the driver's noise contribution should be <0.5 LSB (61 µV RMS) to avoid degrading the ADC's Effective Number of Bits (ENOB). The anti-aliasing filter between the driver and the ADC — typically a 5th to 7th-order passive LC filter — must provide >60 dB of rejection at the Nyquist frequency while maintaining flat passband response (<0.1 dB ripple) and linear phase. The filter's inductors and capacitors must be high-Q components with self-resonant frequencies well above the filter's stopband; the PCB traces connecting them must be kept short to minimize parasitic capacitance and inductance that deviate the filter response.

5.2 Clock Distribution and Jitter

The ADC sampling clock's jitter directly limits the achievable Signal-to-Noise Ratio (SNR). For a 100 MHz IF signal sampled at 400 MSPS with a 14-bit ADC, the SNR limited by clock jitter alone is: SNR_jitter = -20 log(2π × 100 MHz × t_jitter). To achieve SNR > 70 dB (the ADC's thermal noise limit), the clock jitter must be <160 fs RMS — an extraordinarily stringent requirement. The clock distribution PCB must maintain this jitter level from the reference oscillator through the clock buffer and to the ADC clock input. This demands: a low-phase-noise clock source (typically a high-quality VCXO or SAW oscillator), a differential clock distribution (LVDS or LVPECL to reject common-mode noise), and careful PCB layout with controlled-impedance differential pairs, minimal via transitions, and isolation from digital switching noise.
