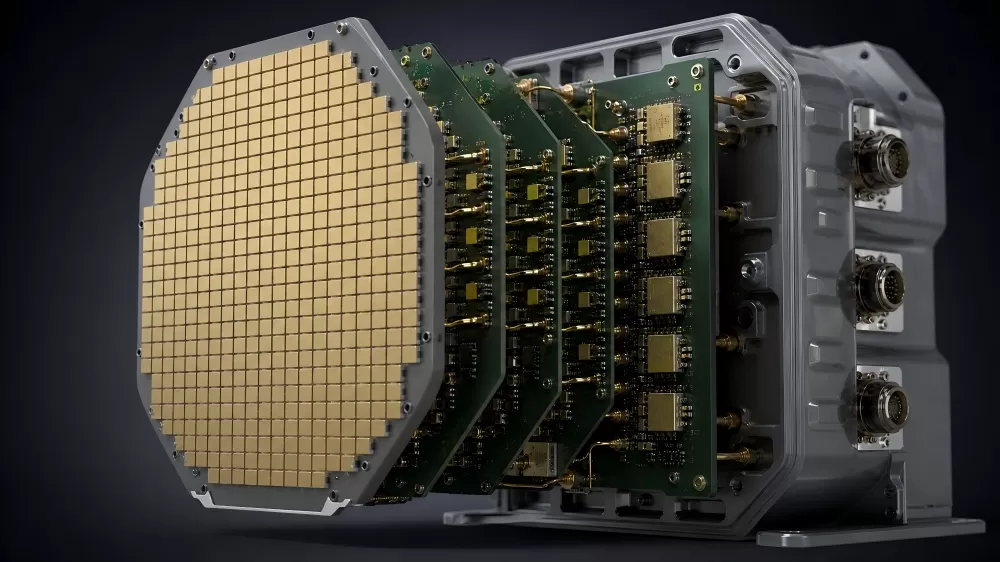

The Active Electronically Scanned Array (AESA) radar represents the most advanced sensor technology in modern defense systems. Unlike mechanically scanned radars that physically rotate an antenna, AESA radars steer the beam electronically by controlling the phase and amplitude of hundreds or thousands of individual Transmit/Receive (T/R) modules. The PCB technology that underpins AESA — from the T/R module substrate to the beamforming manifold and the beam steering controller — is among the most demanding in all of electronics. This article provides a complete technical analysis of phased array radar PCB design, covering T/R modules, beamforming networks, phase shifters, power distribution, and beam steering control.

1. T/R Module PCB: The Fundamental Building Block

The T/R module is the elemental unit of an AESA radar — a self-contained microwave transceiver that provides transmit power amplification, receive low-noise amplification, phase shifting, amplitude control, and T/R switching for a single antenna element (or small sub-array). A modern fighter radar (e.g., AN/APG-81 on the F-35) contains over 1,500 T/R modules, each fabricated on a specialized multilayer PCB or ceramic substrate.

1.1 T/R Module Architecture and PCB Stackup

A typical X-band (8–12 GHz) T/R module integrates: a GaN or GaAs Power Amplifier (10–20 W peak), a GaAs Low-Noise Amplifier (NF < 2.5 dB), a 6-bit digital phase shifter, a 6-bit digital attenuator, a T/R switch or circulator, and a serial control interface (SPI). All these functions must fit within a module footprint of approximately 15 mm × 8 mm × 3 mm — roughly the size of a postage stamp. The PCB substrate for these modules is typically a multi-layer Low-Temperature Co-fired Ceramic (LTCC) or High-Temperature Co-fired Ceramic (HTCC), chosen for its excellent microwave performance (Dk = 5.9–7.8, tan δ < 0.002 at 10 GHz), high thermal conductivity (2–4 W/m·K), and hermetic sealing capability for military environmental requirements.

For cost-sensitive commercial radar (automotive, industrial), organic PCB substrates with advanced laminates are increasingly used. A 10-layer T/R module PCB might use: Rogers RO3003 (Dk = 3.0, tan δ = 0.001) for the RF layers, embedded in a hybrid stackup with FR-4 or polyimide for the DC and digital layers. The critical design challenge is the transition from the RF laminate to the standard laminate — the impedance discontinuity at this interface must be minimized by careful design of the transition via, often using a coaxial via structure with ground vias surrounding the signal via.

1.2 GaN Power Amplifier Integration

Gallium Nitride (GaN) HEMT technology has revolutionized T/R module design, offering 5–10× the power density of GaAs with higher efficiency (50–65% PAE at X-band). However, GaN's high power density (5–10 W/mm of gate periphery) creates extreme thermal challenges: a 20 W GaN MMIC with a die size of 3 mm × 4 mm generates a heat flux exceeding 1,500 W/cm² at the transistor channel. The T/R module PCB must provide a thermal path with <1°C/W resistance from the MMIC die to the cold plate. LTCC achieves this through thermal vias — solid silver or gold-filled vias directly under the MMIC attach area — with a typical via density of 100–200 vias per square millimeter. For organic PCBs, copper coin or copper-moly-copper (CMC) carriers are embedded under the GaN MMIC to spread heat laterally and conduct it to the baseplate. Superb Tech's embedded coin technology achieves thermal resistance of <0.5°C/W for GaN T/R modules up to 50 W peak power.

1.3 T/R Module Interconnects: From Module to Array

Each T/R module must connect to three external interfaces: the RF manifold (combined transmit/receive port), the DC power supply (typically +28 V for GaN PA drain, +5 V for logic), and the digital control bus (SPI clock, data, and latch). These interconnects are typically implemented as: RF — GCPO or SMP blind-mate connectors; DC and digital — spring-loaded (fuzz-button) contacts or flex-circuit interposers. The PCB pads for these interconnects must be co-planar to within ±25 µm across the array face to ensure reliable contact with the mating connector. Superb Tech's precision routing and planarization processes achieve the flatness required for large arrays with hundreds of T/R module interconnects.

2. Beamforming Networks: The RF Distribution Manifold

The beamforming network (BFN) distributes the transmit signal from a single exciter to all T/R modules and combines the received signals from all T/R modules into a single receiver input. For a 1,024-element array, the BFN is a 1:1024 corporate feed network with 1,023 power dividers — a massive RF PCB in its own right.

2.1 Stripline Corporate Feed Design

At X-band and above, the BFN is typically implemented in stripline — a signal layer sandwiched between two ground planes — to eliminate radiation loss and provide >60 dB of isolation between adjacent feed lines. For a 1,024-way corporate feed, the stripline network occupies approximately 200 mm × 200 mm on a single layer, with the binary tree of Wilkinson dividers arranged in a symmetric H-tree topology. Each Wilkinson divider requires a 100 Ω isolation resistor between the output ports; for 1,023 dividers, that's 1,023 resistors that must be placed on the PCB surface and connected by vias to the buried stripline layer. The via inductance (typically 0.3–0.5 nH per via) adds a reactive component that degrades the isolation resistor's effectiveness. At 10 GHz, even 0.3 nH presents 19 Ω of impedance, reducing the effective isolation from >20 dB to approximately 15 dB. This is mitigated by using two parallel vias per resistor terminal (halving the inductance) and placing the resistor as close as physically possible to the divider junction.

2.2 Phase and Amplitude Tracking

The entire BFN must maintain phase and amplitude tracking across all 1,024 paths. The phase error budget for a high-performance AESA is typically ±5° RMS at the array face, which translates to ±2° allocation for the BFN itself — approximately ±0.1 mm of electrical length at 10 GHz. Achieving this across 1,024 paths requires: identical trace lengths for all paths by design (symmetric H-tree), precision etching with <±15 µm trace width variation (Superb Tech's standard for RF layers), and Dk uniformity within ±0.02 across the entire panel. Superb Tech verifies phase tracking by VNA measurement of every path on the BFN panel, providing a phase error map that can be used to calibrate the array.

3. Phase Shifter and Attenuator Integration

Each T/R module requires independent phase and amplitude control with 6-bit resolution (5.625° phase steps, 0.5 dB amplitude steps) or better. The phase shifter and attenuator functions may be integrated into a single "core chip" MMIC or implemented as discrete components on the T/R module PCB.

3.1 Digital Phase Shifter PCB Design

A 6-bit digital phase shifter comprises six switched phase bits — 180°, 90°, 45°, 22.5°, 11.25°, 5.625° — each implemented as a switched-line, switched-filter, or loaded-line topology. The phase accuracy depends on the precision of the transmission line lengths for each bit. For the 5.625° bit at 10 GHz, the differential line length is only 0.15 mm on an alumina substrate (Dk = 9.8). Fabricating such short, precise line lengths requires thin-film processing (sputtered metallization with photolithographic patterning) rather than standard PCB etching. For organic PCB implementations, the phase shifter function is typically integrated into the core chip MMIC, with the PCB providing only the interconnects between the core chip and the PA/LNA.

3.2 Vector Modulator: Continuous Phase and Amplitude Control

An alternative to stepped digital phase shifters is the vector modulator, which achieves continuous 360° phase and 30 dB amplitude control by varying the I and Q components of the signal. The vector modulator PCB requires four DC control voltages (I+, I-, Q+, Q-) with 12–16-bit DAC resolution and settling time <100 ns. The control voltage traces must be shielded from the RF path to prevent AM-to-PM conversion; any coupling of the control voltage onto the RF carrier creates phase modulation sidebands that appear as spurious signals in the radar's doppler spectrum. Superb Tech's multilayer PCB technology provides dedicated inner-layer routing for control signals, isolated from RF layers by continuous ground planes.

4. Power Distribution for AESA Radar

A 1,000-element AESA radar may consume 5–10 kW of DC prime power, distributed across the array face to each T/R module. The power distribution network (PDN) must deliver stable, low-noise DC voltage to every module with minimal I²R losses.

4.1 High-Current DC Distribution

The GaN PA drain supply (typically +28 V at 2–5 A per module, totaling 2,000–5,000 A for the array) requires massive copper cross-section. The DC distribution is implemented using thick copper inner layers (4–12 oz copper, equivalent to 140–420 µm thickness) or, for the highest currents, laminated bus bars integrated into the PCB stackup. The voltage drop across the distribution network must be <1% (280 mV for a 28 V rail) to maintain PA efficiency; for a 5,000 A total current, this requires a total distribution resistance of <56 µΩ — demanding careful design of the copper geometry and the use of multiple parallel layers.

4.2 Pulsed Power and Energy Storage

Radar transmitters operate in pulsed mode with duty cycles of 1–30% and peak-to-average power ratios of 5:1 to 100:1. The PDN must supply the peak current during the transmit pulse (typically 1–100 µs) while drawing only average current from the prime power source. This requires substantial energy storage capacitance on the PDN — typically 1,000–10,000 µF per T/R module, implemented as an array of tantalum or ceramic capacitors. The capacitor bank must have low ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to respond to the fast pulse rise time (typically 10–100 ns). The PCB layout places these capacitors as close to the PA drain pin as possible, with wide copper pours and multiple parallel vias to minimize the parasitic inductance between the capacitor and the PA.

5. Beam Steering Control System

The beam steering controller computes the phase and amplitude weights for every T/R module, updates them at the required beam switching rate (typically 1–100 kHz), and manages array calibration and fault monitoring.

5.1 Beam Steering Processor PCB

For large arrays (>500 elements), beam weight computation becomes computationally intensive: each beam position requires N complex multiplications (for phase rotation) and the beam may be updated every 10–100 µs. Modern beam steering processors use FPGAs or custom ASICs with dedicated DSP slices. The beam steering PCB must route N × 32 bits of weight data to the T/R modules (32,768 bits for a 1,024-element array with 32-bit phase/amplitude words) within the beam update interval. At 100 kHz update rate, this requires a data throughput of 3.2 Gbps — achieved using high-speed serial links (JESD204 or proprietary) or wide parallel buses with LVDS signaling. The PCB must manage the signal integrity of these high-speed digital interfaces while maintaining >80 dB of isolation from the sensitive receiver front-end.

5.2 Built-In Test and Fault Detection

AESA radars employ graceful degradation: if individual T/R modules fail, the array continues operating with slightly degraded performance. This requires continuous monitoring of each T/R module's health — output power, noise figure, current consumption, and temperature. The monitoring PCB includes: RF couplers at each module output (sampling -30 to -40 dB of the transmitted power), multiplexers that sequentially connect each coupler to a shared detector, and an ADC that digitizes the detector output. The monitoring network's calibration — characterizing the loss and phase of every coupler and multiplexer path — must be stable over temperature and lifetime, typically achieved through factory characterization with correction tables stored in non-volatile memory.
