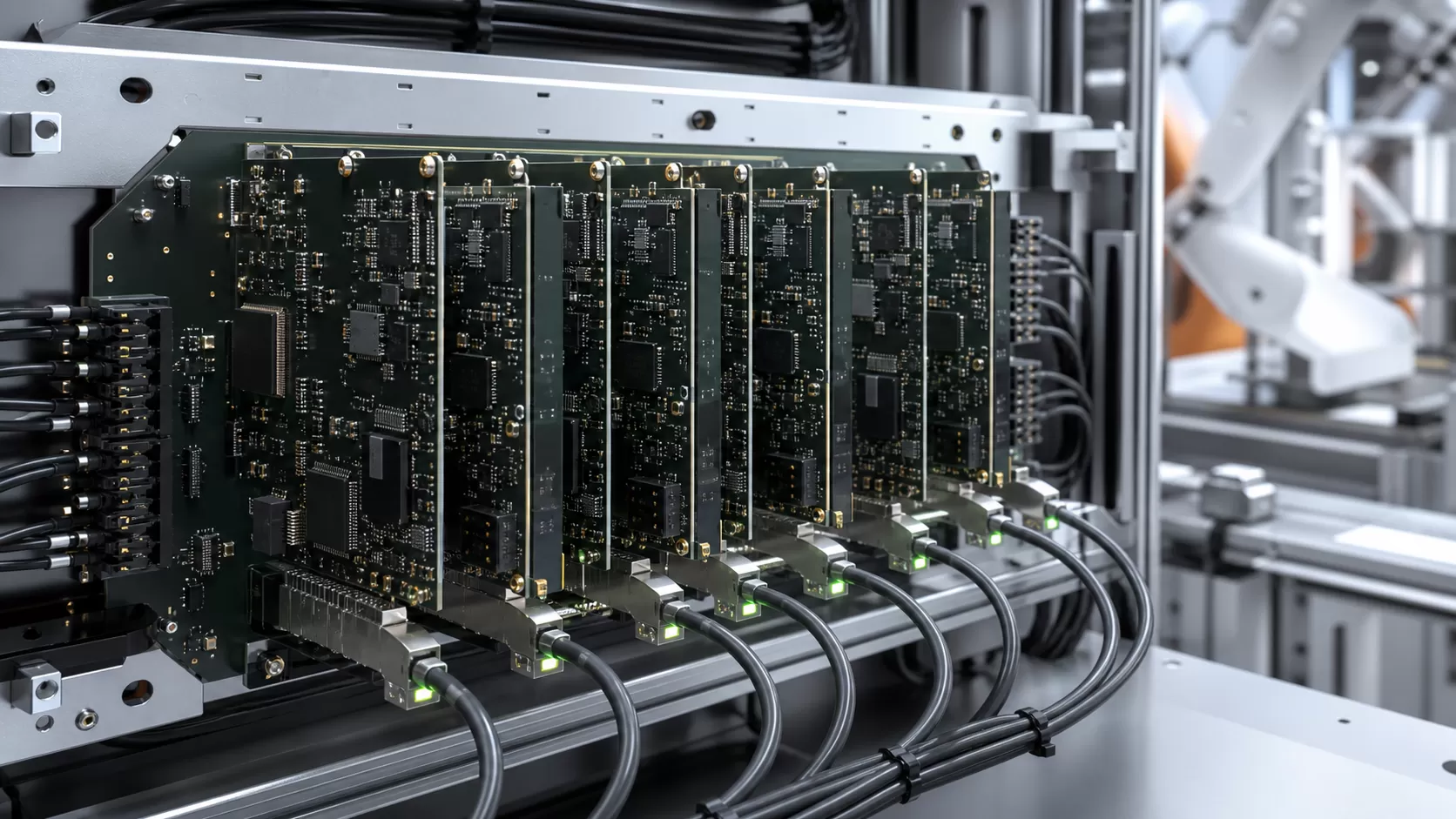

1. The Backbone of Distributed Robot Computing

As embodied robots grow in complexity—more joints, more sensors, more compute—the single-board "brain" architecture reaches its limits. Advanced humanoids and industrial robots increasingly adopt a distributed computing architecture: multiple specialized PCBs (main controller, servo controllers, sensor hubs, safety modules) interconnected through a high-speed backplane or communication backbone that serves as the robot's "spinal cord."

This article examines the PCB technologies that form this backbone: the backplane/midplane boards that mechanically and electrically interconnect modular compute cards, the real-time communication fabrics (EtherCAT, PCIe, TSN) that carry deterministic data between subsystems, and the auxiliary PCBs that handle diagnostics, debugging, and cable management.

2. Robot Backplane & Midplane PCB Architecture

2.1 Backplane vs. Midplane

The robot's internal interconnect PCB can be configured as either:

• Backplane: All daughter cards plug in from one side, routing is on the backplane itself. Simpler mechanically, but all signals must be routed on the backplane PCB

• Midplane (orthogonal): Cards plug in from both front and back with orthogonal connectors, enabling direct connector-to-connector passthrough without backplane routing. More complex mechanically but eliminates long backplane traces

For the compact internal volumes of a robot, the backplane approach is more common, with cards plugging in perpendicular to the robot's long axis.

2.2 Backplane PCB Requirements

2.3 Connector Selection for Robot Backplanes

Connector choice is critical for reliability in a vibrating mobile platform:

• Press-fit connectors: (e.g., Molex Impact, Amphenol ExaMAX) provide gas-tight, solderless connections with excellent vibration resistance. No thermal stress from soldering

• Edge-card connectors: Simpler and lower cost, but require hard-gold plating (30-50μin) on the card edge and may have lower vibration tolerance

• Board-to-board mezzanine: For stacking cards parallel (rather than perpendicular), fine-pitch (0.4-0.8mm) mezzanine connectors with latching mechanisms

• Retention hardware: Captive screws, wedge locks, or lever-actuated cams ensure connectors don't unmate under vibration

3. EtherCAT Backplane Routing & Topology

3.1 EtherCAT as the Robot Backbone

EtherCAT is the dominant real-time protocol for multi-axis robot control and is naturally suited to backplane implementation. Key PCB-level considerations for an EtherCAT backplane:

• Daisy-chain topology: EtherCAT data flows through each slave in sequence. On the backplane, this translates to TX of Slot N connecting to RX of Slot N+1, creating a serpentine path across the board

• MII/RMII routing: Between the EtherCAT slave controller and the Ethernet PHY on each card, the MII or RMII bus must be routed with tight length matching (typically ±25 mils for RMII)

• Magnetics placement: Ethernet magnetics can be placed on the plug-in card or on the backplane. Card-side magnetics simplify the backplane but consume card area

3.2 Signal Integrity on the EtherCAT Backplane

EtherCAT uses standard 100BASE-TX Ethernet physical layer (125MHz symbol rate). PCB requirements:

• 100Ω differential impedance ±10% for all Ethernet MDI pairs

• Total trace length on the backplane typically kept below 300mm (EtherCAT's short-distance nature helps)

• Avoid vias in the differential pair path; if unavoidable, both traces of the pair must have identical via count and geometry

4. PCIe & High-Speed Inter-Board Links

4.1 PCIe for High-Bandwidth Interconnects

While EtherCAT handles low-latency control data, high-bandwidth sensor data (cameras, lidar point clouds) between the main controller and processing cards may use PCIe:

• PCIe Gen3 (8 GT/s): Common for robot interconnects. Nyquist at 4GHz; manageable on FR-4 backplanes up to 250mm

• PCIe Gen4 (16 GT/s): Nyquist at 8GHz; requires low-loss backplane materials (Megtron 4/6 class)

• Lane count: x1, x2, or x4 typically sufficient for robot sensor bandwidths

4.2 PCIe Backplane Routing

• 85Ω differential impedance ±10%

• AC coupling capacitors (220nF) on the TX side of each lane, placed near the transmitter

• PCIe reference clock: 100MHz HCSL (High-Speed Current Steering Logic) differential, distributed to all slots with <50 mils inter-slot skew

• PERST# signal distributed to all slots with controlled skew for coordinated reset

5. Multi-Board Interconnect Strategies

5.1 Interconnect Options Comparison

5.2 Hybrid Backplane Design

A modern robot backplane typically carries multiple bus types simultaneously:

• Slot pinout partitioning: Dedicated pin groups for EtherCAT (4 pins: TX±, RX±), PCIe (per-lane: 4 pins TX± RX±), power (multiple pins per voltage rail), management (I2C, reset), and user-defined GPIO

• Layer assignment: High-speed differential pairs on dedicated inner layers sandwiched between ground planes; power on separate heavy-copper layers; management signals on outer or near-outer layers for easy probing

6. Clock Distribution & Synchronization

6.1 Distributed Clock Architecture

For coordinated motion across multiple servo cards, all axes must share a common time base. The backplane distributes:

• EtherCAT Distributed Clocks (DC): The EtherCAT master propagates a reference clock through the daisy chain; the backplane's propagation delay is deterministic and compensated in the DC algorithm

• Sync0/Sync1 signals: Hardware trigger signals distributed on dedicated backplane traces, providing sub-microsecond synchronization for simultaneous ADC sampling across multiple cards

• Reference clock: A low-jitter oscillator on the backplane distributes the EtherCAT reference clock (typically 25MHz) to all slots

6.2 Sync Signal Routing

Hardware synchronization signals require special backplane routing:

• All sync traces from the clock source to each slot must be length-matched to within ±10 mils

• Use low-voltage differential signaling (LVDS) for sync signals on longer backplanes (>100mm) to reject common-mode noise

• Termination resistors at the destination slot (100Ω differential for LVDS)

7. Diagnostic & Debug Auxiliary PCBs

7.1 Debug and Test Interface Board

Robots require extensive debug access during development and field troubleshooting. A dedicated debug/test interface PCB provides:

• JTAG chain: Daisy-chained JTAG access to all programmable devices (MCUs, FPGAs, CPLDs) on all plug-in cards, accessible via a single external connector

• Serial console multiplexer: A UART multiplexer that routes the serial console of any card to the debug port

• Status LEDs: Per-card power-good, communication-link, and fault indicators

• Test points: Accessible test points for critical signals (power rails, clock, reset)

8. Cable Management & Harness Reduction PCB

8.1 Harness Consolidation Board

Even with backplane-based architectures, robots still need to route power and signals to distributed sensors and actuators. A harness consolidation PCB mounted at a central location:

• Aggregates multiple sensor cables into a single high-density connector to the backplane

• Provides local power regulation for distributed sensors

• Includes ESD protection and filtering on all external-facing connectors

• Reduces wiring complexity by consolidating 10-20 individual cables into 2-3 high-density cable assemblies

8.2 Slip Ring Interface PCB

For robots with continuous-rotation joints (e.g., a rotating torso or wrist), a slip ring transmits power and signals across the rotating interface. The slip ring interface PCB provides:

• Filtering and termination for the signals passing through the slip ring (which introduces noise and impedance discontinuities)

• Differential signaling (LVDS) for all signals crossing the slip ring to reject common-mode noise from the rotating contacts

• Power filtering to handle the intermittent contact of power rings during rotation

9. Backplane Reliability in Mobile Environments

9.1 Vibration and Shock

The robot backplane must maintain reliable connections under continuous vibration and occasional shock. Key design practices:

• Mounting points: Backplane PCB must be supported at regular intervals (every 100-150mm) to prevent resonant flexing

• Card guides: Each plug-in card should have mechanical card guides at both ends to prevent connector stress from vibration

• Stiffener bars: Metal stiffener bars bolted to the backplane parallel to the connector rows resist board flex

• Conformal coating: For robots in humid or outdoor environments, the backplane should be conformal coated after assembly

9.2 Thermal Considerations

The backplane itself generates little heat (passive traces only), but it conducts heat from hot plug-in cards. Design considerations:

• Avoid placing temperature-sensitive components (electrolytic capacitors, crystals) adjacent to hot-card slots

• Thermal vias in the backplane under hot components on plug-in cards can assist heat transfer to a backside cold plate

• Slot spacing: Allow 15-20mm between cards for airflow or conduction cooling

10. Optical Interconnects for Next-Gen Robots

As robot sensor bandwidths increase (8K cameras, high-resolution lidar), electrical interconnects face bandwidth-distance limitations. Emerging optical interconnect technologies include:

• Active optical cables (AOC): Pre-terminated fiber cables with integrated transceivers, plugging into standard electrical connectors. No change to the backplane PCB required

• On-board optics: Optical transceivers soldered directly to the backplane, with fiber routing between slots. Requires precision fiber management features on the PCB

• Polymer waveguides: Optical waveguides fabricated as part of the PCB stackup, routing optical signals alongside electrical traces. Still emerging technology for volume production

11. Conclusion

The backplane and communication auxiliary PCBs in an embodied robot are the physical manifestation of the system architecture. A well-designed backplane provides the electrical and mechanical foundation for modular, maintainable, and scalable robot electronics. The choice of interconnect protocols, connector technologies, and physical layout determines not only the robot's data throughput and latency but also its long-term reliability and serviceability.

As robots evolve toward greater complexity and autonomy, the backplane will continue to evolve—from today's hybrid electrical designs toward tomorrow's electro-optical platforms that blur the lines between PCB, optical fiber, and waveguide technologies.
