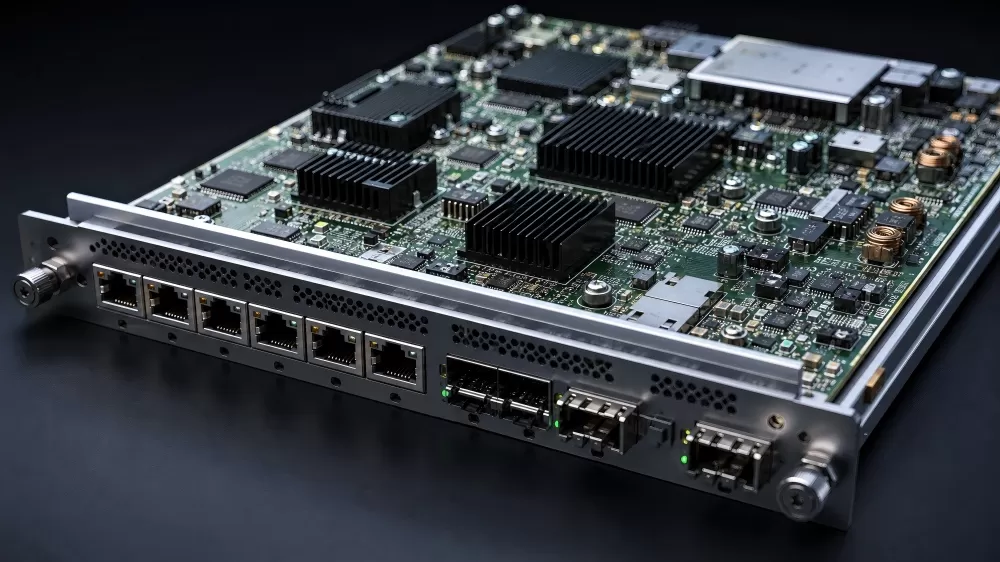

Network equipment — routers, Ethernet switches, firewalls, security gateways, and load balancers — forms the distributed intelligence that directs, filters, and secures data traffic across the global internet. While these devices are often commoditized in enterprise settings, carrier-grade and data center network equipment pushes PCB technology to its limits, demanding high-speed SERDES interfaces at 112 Gbps PAM4, multi-terabit switch fabrics, and carrier-class reliability. This article provides a comprehensive analysis of PCB design for network equipment, spanning the range from compact enterprise switches to chassis-based core routers.

1. Ethernet Switch PCB Design

Ethernet switches range from simple 5-port unmanaged desktop units to modular chassis switches with hundreds of 400G ports. The PCB design complexity scales dramatically across this range, driven primarily by the switch ASIC's SERDES lane count and speed.

1.1 Fixed-Configuration Switch PCBs

A modern data center Top-of-Rack (ToR) switch — for example, a 32-port 400G system — is typically implemented on a single large PCB (approximately 450 × 350 mm) hosting the switch ASIC, PHY or retimer ICs, port connectors (QSFP-DD or OSFP cages), CPU/memory subsystem, and power management. The switch ASIC at the heart of this design — such as the Broadcom Tomahawk 5 (51.2 Tbps) — may have 512 SERDES lanes operating at 106.25 Gbps PAM4 each.

Routing 512 high-speed SERDES lanes from a single large BGA package (typically 55–65 mm body size, 5000+ pins) to edge-mounted connector cages presents one of the most challenging PCB routing problems in the electronics industry. The routing strategy follows a hierarchical approach:

• BGA break-out: The inner rows of the BGA are routed on the top microstrip layer (to minimize via stub length), middle rows on inner layer 1, and outer rows on inner layer 2 — requiring 3–4 dedicated routing layers just for the BGA escape

• Dog-bone routing: The traces fan out from the BGA in a radial pattern, maintaining consistent impedance and minimizing length differences between adjacent lanes

• Via transitions: Each via from the top-layer BGA pad to an inner routing layer requires a ground return via placed within 1 mm of the signal via to maintain the return current path and control via impedance

• Connector launch: The transition from PCB trace to the QSFP-DD connector footprint requires a carefully designed launch with back-drilled vias (if through-hole press-fit connectors are used) or optimized SMT pad geometries (for surface-mount connectors) to minimize impedance discontinuity

The channel loss budget drives the PCB material selection. For 106.25 Gbps PAM4 signaling (Nyquist frequency 26.56 GHz), the IEEE 802.3ck specification allows approximately 28 dB of total channel insertion loss at Nyquist. With the switch ASIC package contributing 8–10 dB, the connector 2–3 dB, and the cable/module 2–4 dB, the PCB trace budget is typically 10–15 dB. On ultra-low-loss materials like Megtron 8 (Df ≈ 0.002 at 10 GHz) with ultra-smooth copper, this allows trace lengths up to approximately 200 mm — sufficient for most ToR switch form factors.

1.2 Enterprise and SMB Switch PCBs

Enterprise and small-to-medium business (SMB) switches operate at lower data rates (1G/2.5G/5G/10G per port) and port counts (8–48 ports), resulting in more forgiving PCB requirements. These designs typically use mid-loss materials (FR-4 High-Tg or mid-loss FR-4 alternatives like Isola 370HR) with 8–14 layer stackups. The primary design challenge shifts from raw signal integrity to cost optimization: minimizing layer count, material cost, and manufacturing complexity while meeting the performance specifications.

2. Router PCB Design

Routers differ from switches in their use of Network Processing Units (NPUs) or routing ASICs that perform Layer 3 forwarding, Quality of Service (QoS), access control, and traffic engineering functions that go beyond the Layer 2 switching performed by switch ASICs. This additional processing complexity manifests in several PCB design differences.

2.1 NPU and Deep Buffer Architectures

Carrier-grade routers employ NPUs — programmable packet processors from vendors like Broadcom (Jericho, Qumran), Cisco (Silicon One), Juniper (Trio, Express), or Nokia (FP5) — that combine high-speed SERDES interfaces with programmable forwarding pipelines and deep packet buffers. The deep buffer (typically gigabytes of external DRAM) enables the router to absorb traffic bursts and implement sophisticated congestion management algorithms — a capability that switches with shallow on-chip buffers cannot match.

The external buffer memory interface dominates the PCB design of router line cards. A high-end NPU may support 8–16 DDR5 channels, each 40 bits wide (32 data + 8 ECC), operating at 5600+ MT/s. This translates to 320–640 signal lines that must be length-matched within each byte lane and routed with minimal crosstalk. The memory devices are typically placed on both sides of the PCB (clamshell topology) or on a separate memory mezzanine card to reduce trace lengths and improve signal integrity.

2.2 Modular Router Backplane Design

Chassis-based routers — the highest-capacity systems deployed in service provider cores — use a modular architecture with line cards, switch fabric cards, and route processor cards interconnected through a passive backplane or midplane. The backplane PCB is a unique design challenge:

• Size: Large form factor — typically 400–600 mm tall × 400–500 mm deep — pushing PCB manufacturing panel size limits

• Thickness: 4–8 mm finished thickness to provide mechanical rigidity without additional stiffeners, achieved through multiple laminations

• Connector density: High-density backplane connectors with 50–100 differential pairs per connector, 20–40 connectors across the backplane — yielding 1,000–4,000 high-speed signal pairs to route

• Signal integrity: Trace lengths of 200–500 mm at 25–56 Gbps, requiring active signal conditioning (re-drivers or re-timers) on the line cards and strict backplane channel compliance testing

Backplane material selection involves a trade-off between electrical performance and manufacturability. Materials like Megtron 6 or Isola 370HR provide a balance of acceptable loss, ease of lamination, and cost. The copper foil roughness is a critical parameter — standard reverse-treated foil (RTF) with Rz ≈ 3–5 µm may be acceptable for 25 Gbps NRZ but causes excessive loss at 56 Gbps PAM4, where ultra-low-profile foils with Rz < 2 µm become necessary.

3. Security Gateway and Firewall PCB Design

Next-generation firewalls (NGFW) and unified threat management (UTM) appliances combine traditional packet filtering with deep packet inspection (DPI), intrusion prevention (IPS), SSL/TLS decryption, and application identification. These functions require significant processing power, which drives the PCB design toward high-performance computing platforms with specialized acceleration hardware.

3.1 Hardware Acceleration for Security Processing

SSL/TLS decryption at line rate (necessary to inspect encrypted traffic) is computationally intensive. A firewall handling 100 Gbps of TLS 1.3 traffic must perform tens of millions of RSA/ECDHE key exchanges and symmetric encryption operations per second. This workload is offloaded to hardware security modules (HSMs), cryptographic accelerator cards, or dedicated SSL offload ASICs integrated onto the firewall PCB.

The cryptographic accelerator interfaces with the main CPU/NPU via PCIe Gen4/5, requiring careful PCIe signal integrity design. PCIe Gen5 at 32 GT/s (16 GHz Nyquist) demands trace insertion loss below approximately 0.8 dB/inch, limiting trace lengths to 200–300 mm on ultra-low-loss materials. The PCIe reference clock distribution must meet the jitter requirements of the PCIe specification — typically sub-500 fs RMS for Gen5 — which drives the use of dedicated clock buffers and clean power supply filtering.

3.2 Bypass and Fail-Open Circuitry

Many security appliances include hardware bypass (fail-open) functionality that allows network traffic to continue flowing even if the appliance loses power or suffers a software failure. This is implemented using bypass relays or switches on the PCB that physically connect the input and output Ethernet ports when de-energized.

The bypass circuit presents an interesting PCB design challenge: the relay must be placed in the high-speed Ethernet signal path with minimal impact on signal integrity during normal (non-bypassed) operation. This requires careful relay selection (RF-rated relays with controlled impedance and low insertion loss at multi-gigabit frequencies) and PCB layout that minimizes the stub length from the main signal path to the relay.

4. Power over Ethernet (PoE) PCB Considerations

Many enterprise switches and security appliances support Power over Ethernet (PoE), delivering up to 90W per port (IEEE 802.3bt Type 4) to connected devices. A 48-port PoE switch must be capable of delivering up to 4,320 watts of total PoE power — a formidable power distribution challenge on the PCB.

The PoE power delivery path on the PCB starts at the main power supply connector (typically -48V DC or rectified AC), passes through per-port PoE controllers (PSE ICs) that perform device detection, classification, and current limiting, and terminates at the RJ45 magnetics. The high currents involved — up to 960 mA per port at the PSE output — require heavy copper traces (2–4 oz) or internal power plane layers dedicated to PoE power distribution. The PCB must also manage the heat dissipated by the PoE controllers and magnetics, which can total 50–150 watts in a fully loaded 48-port switch.

5. Manufacturing Network Equipment PCBs

Network equipment PCB manufacturing demands precision at scale. Superb Tech's capabilities for these applications include:

• High layer counts: 20–40 layers for switch/router line cards and backplanes

• Advanced materials: Megtron 6/7/8, Tachyon 100G, and mixed dielectric constructions

• Fine feature sizes: 75/75 µm line/space on critical routing layers

• Back-drilling: ±50 µm depth accuracy for stub removal on high-speed vias

• Heavy copper: 2–6 oz copper for power distribution and PoE applications

• Large form factors: Panel sizes up to 610 × 760 mm for backplane manufacturing

• Impedance control: ±7% on high-speed differential pairs, verified by TDR on every panel
