1. Introduction: The PCB Backbone of AI Training

The training of large AI models—GPT-4 class transformers, multimodal foundation models, and trillion-parameter architectures—demands unprecedented computational density. A single training cluster may contain tens of thousands of GPUs, each consuming upwards of 700W to 1000W, interconnected through high-bandwidth fabrics operating at 400Gbps and beyond. Underpinning this entire infrastructure is a hierarchy of printed circuit boards (PCBs) that must simultaneously handle extreme current densities, multi-gigahertz signals, and stringent thermal constraints.

What makes AI training PCBs distinct from traditional server or telecom PCBs? The answer lies in three compounding factors: power integrity (delivering 700A+ per GPU board with sub-millivolt ripple), signal integrity (maintaining 112Gbps PAM4 eye diagrams across dozens of differential pairs), and thermal-mechanical reliability (managing CTE mismatch between 50mm+ silicon interposers and organic substrates under 100°C+ temperature cycles). This article dissects every PCB type in the AI training stack, from the GPU accelerator card itself down to the power distribution bus bars.

2. GPU Accelerator Card PCBs

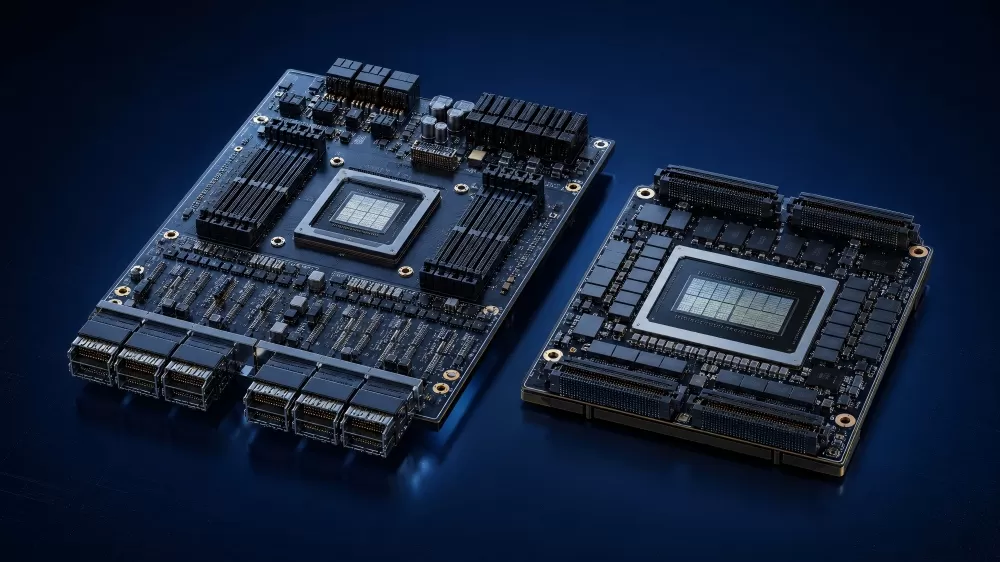

The GPU accelerator card PCB is the centerpiece of AI training hardware. Modern designs such as the NVIDIA H100 SXM5 module and the B200 OAM (Open Accelerator Module) push PCB technology to its absolute limits.

2.1 PCB Architecture & Layer Stack

A typical H100-class accelerator board is a 22-26 layer HDI PCB with the following cross-section:

2.2 Material Selection

The base material for AI accelerator PCBs has evolved rapidly. Traditional FR-4 is entirely inadequate for 112Gbps signaling. Modern designs use:

• Megtron 6 / Megtron 7 (Panasonic): Ultra-low-loss materials with Df < 0.002 at 10GHz, essential for maintaining signal integrity across 30cm+ trace lengths.

• EM-891K (EMC): Very low-loss with excellent thermal reliability, Tg > 200°C.

• Isola Tachyon 100G: Specifically engineered for 100Gbps+ applications, with stable Dk across temperature and frequency.

• PTFE/ceramic composites: Used in the most demanding RF/microwave sections, though less common in mainstream AI boards due to fabrication complexity.

2.3 Design Challenges

The primary design challenge is BGA breakout routing. The H100 GPU package has a ball count exceeding 4,000 with a 0.8mm pitch, requiring advanced HDI techniques including:

• Microvias: Laser-drilled blind vias (75-100μm) for layer 1-2 and 1-3 transitions

• Buried vias: Mechanically drilled for deeper layer transitions

• Via-in-pad: Plated-over filled vias directly in BGA pads, essential for dense breakouts

• Skip vias: Jumping from layer 1 to layer 3-4, bypassing intermediate layers for signal integrity

Power integrity is equally demanding. With core voltages of ~0.8V and currents approaching 600A, the IR drop across the power distribution network (PDN) must be kept below 10mV. This requires massive copper pours (2-4 oz inner layers), hundreds of decoupling capacitors spanning multiple decades of frequency response, and careful placement of voltage regulator modules (VRMs) within 5mm of the GPU package edge.

3. NVLink Interposer & Bridge PCBs

NVIDIA's NVLink fabric is the nervous system of multi-GPU AI training systems. The physical implementation requires specialized PCBs that differ significantly from standard high-speed boards.

3.1 NVLink Switch PCB

The NVLink Switch (e.g., NVSwitch 3 in DGX H100 systems) is a dedicated ASIC that routes traffic between 8 GPUs. Its PCB is typically a 20-24 layer ultra-low-loss design supporting 64+ NVLink lanes at 50GB/s per lane. Key characteristics:

• Differential pairs with tight intra-pair skew control (<1 ps="">

• Extensive use of backdrilling to remove via stubs above 10GHz

• Thermal vias under the 750W+ switch ASIC for heat spreading

• Redundant power planes for A+B power feed configurations

3.2 NVLink Bridge (Interposer)

For 2-GPU and 4-GPU interconnect topologies (e.g., in HGX baseboards), NVLink bridges are implemented as high-density interposer PCBs. These are typically 10-14 layer boards with the following special requirements:

• Length-matched differential pairs with sub-50μm matching across 100mm+ distances

• Low-profile connectors (MEC-DOCK or equivalent) on both ends

• Rigid-flex construction in some designs to accommodate mechanical tolerances

• Impedance control to 85Ω ±5% across the full Nyquist frequency of the signaling rate

4. Power Delivery & VRM PCBs

The power delivery subsystem in AI training hardware is arguably more challenging than the signal layer design. A single 8-GPU node may consume 10kW+, requiring a multi-stage power conversion architecture.

4.1 Voltage Regulator Module (VRM) Daughter Cards

Modern AI systems use vertical VRM daughter cards that plug perpendicular to the main accelerator board. These are typically 8-12 layer PCBs with:

• Heavy copper (4-6 oz) on power layers for the 48V→12V→0.8V conversion path

• Integrated magnetics (coupled inductors) for multi-phase buck converters

• Thermal planes coupled to cold plates for the 95%+ efficient DrMOS power stages

• Current sensing using PCB-embedded shunt traces or Hall-effect sensors

4.2 Power Distribution Network (PDN) Design

The PDN spans from the 48V rack-level bus down to the 0.8V GPU core rail. At each stage, the PCB must handle increasing current:

5. Bus Bar & Power Distribution Boards

At the rack level, power distribution transitions from traditional PCBs to bus bar assemblies and heavy copper distribution boards.

5.1 Laminated Bus Bars

For the 48V distribution within a rack, laminated bus bars offer several advantages over cabled solutions:

• Lower inductance: The wide, flat conductor geometry and close spacing of positive/negative layers minimizes loop inductance (<5nh), critical="" for="" suppressing="" voltage="" transients="" during="" gpu="" load="" steps="">

• Better thermal performance: The large surface area enables natural convection cooling of the conductors

• Higher reliability: No cable fatigue or connector wear-out mechanisms

A typical rack-level bus bar is a 4-layer construction with 1-2mm thick copper sheets separated by PET or Nomex insulation, rated for 500A+ continuous.

5.2 Heavy Copper Distribution PCBs

Where bus bars are impractical (e.g., within the server chassis), heavy copper PCBs with 6-12 oz copper on outer layers and 4-6 oz on inner layers are used. These boards often incorporate:

• Press-fit connectors for tool-less assembly to the backplane

• Integrated current sensing using Kelvin-connected shunt resistors

• Fuse and circuit breaker mounting provisions

• FR-4 or polyimide base materials rated for 150°C continuous operation

6. Thermal Management Substrates

Thermal management in AI training systems goes beyond heatsinks and cold plates—it extends into the PCB itself through thermal substrate technologies.

6.1 Metal Core PCBs (MCPCB)

For power conversion stages and LED indicator boards, aluminum or copper core PCBs provide direct thermal paths from components to the chassis. A typical construction is:

• Top copper layer (1-2 oz) for circuitry

• Thin dielectric layer (75-150μm) with high thermal conductivity (>3 W/m·K)

• Aluminum or copper base plate (1.5-3mm) for heat spreading

6.2 Embedded Heat Pipes in PCB

An emerging technology for AI accelerator boards is the embedding of heat pipes or vapor chambers within the PCB stackup. This approach:

• Conducts heat laterally from hot spots to edge-mounted cold plates

• Reduces the thermal resistance between the GPU package and the cooling solution by 20-30%

• Requires specialized fabrication: cavities milled into the PCB, heat pipes inserted, and the stack laminated around them

7. Cluster Backplane & Midplane PCBs

In modular AI training systems (e.g., NVIDIA DGX, custom OCP-inspired designs), the backplane or midplane PCB serves as the interconnection fabric between compute sleds, storage nodes, and network switches.

7.1 Design Requirements

A cluster backplane for AI training typically requires:

• 26-34 layers to accommodate multiple high-speed fabrics (NVLink, PCIe, Ethernet)

• Very large form factor: Often 600mm × 800mm or larger, pushing panel utilization limits

• Ultra-low-loss materials: Megtron 7 or better for 112Gbps PAM4 signals over 1m+ trace lengths

• Active signal conditioning: Redrivers or retimers soldered directly to the backplane for long-reach channels

• Press-fit connectors: For high reliability and field serviceability of plug-in modules

7.2 Signal Integrity Challenges

The dominant challenge is channel loss. At 28GHz Nyquist (for 56Gbaud PAM4), a Megtron 7 backplane trace may exhibit 1.2-1.5 dB/inch of insertion loss. Over a 40-inch round-trip path through two connectors and the backplane, total loss can exceed 60dB—requiring sophisticated equalization (CTLE, DFE) in the SerDes. Backdrilling via stubs to within 5-8 mils of the signal layer is mandatory to suppress stub resonances that would otherwise create nulls in the channel response.

8. HBM Memory Interposer PCBs

High Bandwidth Memory (HBM) is integral to AI accelerators, and its integration requires specialized interposer technology.

8.1 Silicon Interposer vs. Organic Interposer

Current HBM integration (HBM2e, HBM3) uses a silicon interposer (typically 65nm or 45nm node passive silicon) that sits between the GPU die and the HBM stacks. This is fabricated using semiconductor processes, not traditional PCB fabrication. However, the industry is transitioning toward organic interposers using PCB-like processes:

• Fan-out wafer/panel-level packaging: Using RDL (redistribution layer) processes on organic substrates

• 2-5μm line/space capability: Far finer than conventional PCB (typically 35-50μm), but coarser than silicon interposer (0.4-1μm)

• Cost advantage: 40-60% cheaper than silicon interposer for large (>2x reticle) interposers

• Yield advantage: Organic substrates don't suffer from the reticle limit that constrains silicon interposer size

8.2 PCB Role in HBM Integration

While the interposer itself may not be a traditional PCB, the package substrate that carries the interposer+GPU+HBM assembly is. This substrate is typically:

• 14-18 layer FCBGA with 2-2-2 or 3-2-3 build-up structure

• Ajinomoto Build-up Film (ABF) dielectric with<15μm layer="" thickness="">

• Sub-10μm line/space for escape routing from the interposer's microbump array

• Coreless or thin-core construction for improved warpage control

9. Design Challenges & Manufacturing Considerations

9.1 Impedance Control Tolerances

For 112Gbps PAM4 signaling, impedance must be controlled to 85Ω or 100Ω differential with tolerances of ±5% across the full bandwidth. This requires:

• Trace width and spacing controlled to ±5μm

• Dielectric thickness uniformity within ±5% across the panel

• Copper roughness (Rz) controlled to<3μm on="" signal="" layers="">

9.2 Warpage Control

Large accelerator boards (200mm × 300mm+) with asymmetric copper distribution experience significant warpage during reflow soldering. Countermeasures include:

• Balanced copper distribution (dummy copper fills on sparse layers)

• Low-CTE core materials (XY CTE<10 ppm="">

• Optimized reflow profiles with controlled cooling rates

• Post-reflow warpage measurement and sorting

9.3 CAF Resistance

Conductive Anodic Filament (CAF) growth is a critical failure mode in high-voltage, high-humidity environments. AI training PCBs operating at 48V bus voltages in data center conditions require:

• CAF-resistant glass weave styles (e.g., flat glass, spread glass)

• Minimum hole-to-hole spacing of 0.8mm for 48V potential differences

• High-quality resin systems with good glass wet-out

10. Future Trends: Co-Packaged Optics & Beyond

The roadmap for AI training PCBs points toward several transformative technologies:

10.1 Co-Packaged Optics (CPO)

As electrical channel loss becomes insurmountable at 224Gbps and beyond, CPO brings the optical transceiver directly onto the switch or accelerator package substrate. This requires:

• Optical waveguides integrated into the PCB or package substrate

• Precision fiber attachment with sub-micron alignment

• Mixed-signal PCB design combining 224Gbps electrical and optical interfaces

10.2 Embedded Die / Embedded Component Substrates

Embedding active and passive components within the PCB stackup reduces parasitic inductance and saves board area. For AI power delivery, embedding multi-layer ceramic capacitors (MLCCs) within the PCB can reduce the PDN impedance by 30-50% compared to surface-mount placement.

10.3 Glass Core Substrates

Intel and others are developing glass core substrates that offer:

• Near-zero CTE for better warpage matching with silicon

• Smoother surfaces enabling finer line/space (sub-5μm)

• Through-glass vias (TGV) for high-density vertical interconnects

11. Conclusion

The PCB ecosystem underpinning AI large model training is among the most demanding in the electronics industry. From the 26-layer high-speed accelerator board to the laminated bus bars carrying 500A, every substrate must be designed with meticulous attention to signal integrity, power integrity, and thermo-mechanical reliability. As the industry pushes toward 224Gbps signaling rates, co-packaged optics, and glass core substrates, the boundaries between traditional PCB fabrication and semiconductor packaging will continue to blur.

For engineers and procurement professionals specifying AI training infrastructure, understanding this PCB hierarchy is essential. The quality of these interconnects directly determines system performance, reliability, and total cost of ownership. At Superb Automation, we bring decades of high-speed, high-power PCB expertise to every AI training project.
