Abstract
The transformation of an optical module PCBA from Gerber files to stably deliverable mass-produced products involves far more than conventional SMT assembly. A mature manufacturing workflow covers DFM verification, BOM engineering, SMT processing, ICT, FCT, aging testing, packaging and MES traceability. Every link eliminates uncertainties for subsequent processes and ensures consistent mass production quality.
1. R&D prototyping is not just "making a few boards", but verifying a replicable manufacturing path
Most R&D teams only focus on whether the prototype board can work normally during the sampling phase. However, mass production often encounters various problems including unavailable components, incompatible stencils, solder bridging on pads, excessive test duration and insufficient maintenance space. The biggest risk in manufacturing is not prototype failure, but barely qualified samples without standardized and replicable process parameters.
The whole process from R&D prototyping to mass production for optical module PCBA is essentially a continuous elimination of uncertainties. DFM eliminates design and manufacturing uncertainties; BOM engineering eliminates material uncertainties; subsequent assembly processes eliminate soldering and assembly uncertainties; functional testing eliminates electrical and functional uncertainties; aging screening eliminates early failure risks; standardized packaging avoids transportation damages; and the MES system integrates all process data to build a complete traceability chain.
2. DFM: Lower modification costs with early problem detection
DFM review is not a process of manufacturing teams criticizing design flaws, but a mechanism to implant mass production experience into the early R&D stage. Standard DFM review items include PCB panelization design, edge processing, positioning holes, fiducial marks, component spacing, stencil manufacturability, BGA routing escape, solder mask opening, thermal pads, test points, rework space and depaneling stress control.
Manufacturing Case: In the first version of an 800G project, the full opening design of QFN thermal pads caused solder overflow during trial production, leading to solder bridging and component displacement. After DFM optimization, partitioned openings and adjusted stencil thickness were adopted, increasing the first-pass yield (FPY) by approximately 6% in the second version. A high-value DFM report not only classifies risks by red/yellow/green levels, but also provides targeted modification suggestions, risk ratings and alternative control schemes for unmodified items.
3. BOM Engineering: The foundation of sustainable mass production
BOM verification covers product functionality, component packaging, supply stability and process compatibility. The manufacturing team strictly checks part numbers, package dimensions, component polarity, moisture sensitivity level (MSL), solderability, substitute consistency, minimum packaging quantity, incoming material specifications and special storage requirements. A common risk for high-speed optical modules is that R&D BOMs mark "equivalent substitutes", while alternative components from different manufacturers differ in package height, solder ball alloy, bottom structure and temperature resistance grade.
Mass-production BOM management also includes AVL (Approved Vendor List) verification, component lifecycle tracking and domestic substitution evaluation. Management teams focus not only on unit prices, but also on alternative supply sources for shortage risks and reliability verification requirements after component replacement. Material substitution on the production line must be MES-controlled, prohibiting empirical arbitrary replacement by on-site operators.

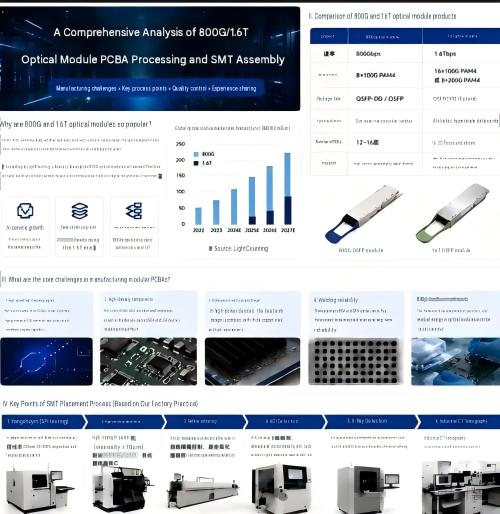

_134157.jpg)
4. SMT: Solder printing defines the baseline, reflow soldering determines the final quality
The standard SMT workflow includes board baking, solder paste printing, SPI, component placement, reflow soldering, AOI and X-Ray inspection as required. While placement machines are regarded as core equipment, solder paste printing accounts for most soldering defects and fundamentally determines assembly quality.
Stencil thickness and opening design need to balance the processing requirements of 0201 micro-components, fine-pitch devices and large thermal pads. SPI monitors solder paste volume, height, area and offset deviation. Placement programming optimizes nozzle selection, visual calibration, placement pressure and material rejection rate. Reflow profile parameters include temperature rise slope, constant temperature zone duration, peak temperature and liquid-phase retention time.
Company Case: A batch of boards suffered frequent 0402 component offset during AOI inspection. After excluding equipment calibration errors, the root cause was uneven heating at the panel edge, where solder paste surface tension pulled components sideways during reflow. The defect was significantly reduced after optimizing board support fixtures and reflow zone temperature parameters.
5. ICT: Rapid isolation of manufacturing defects instead of replacing FCT
ICT tests circuit open/short circuits, resistance, capacitance, diode performance, power supply networks and partial component status via dedicated test points and fixtures. It features high test speed and precise defect positioning, effectively detecting wrong components, missing components, soldering open/short faults. Its limitations lie in insufficient test points, complex parallel circuit networks and high sensitivity of high-speed PCBs to probe and fixture parasitic parameters.
Test point layout should be synchronized in the R&D stage. Many projects fail to reserve ICT test points in the design phase, resulting in only flying probe testing available or reduced test coverage in mass production. The optimal strategy is to apply ICT for high-probability manufacturing defects and delegate complex functional verification to FCT.
6. FCT: Verify product functions and test system reliability simultaneously
FCT covers power-on test, current detection, communication performance, EEPROM configuration, DOM monitoring, optical power, extinction ratio, bit error rate, loopback test and alarm function verification. The core difficulty of high-speed optical module FCT is that test equipment, reference optical fibers, fixtures, ambient temperature, firmware versions and calibration status all affect test results.
Mass production testing requires standardized GR&R verification, golden sample equipment, limit samples, calibration cycle management and program version control. Low first-pass yield is not always caused by product defects; it may result from optical fiber end-face contamination, fixture wear or unreasonable test threshold settings. Mature factories distinguish between product defect rate and test system false failure rate.
7. Aging Test: Block early failures before product delivery
Aging testing accelerates the exposure of early potential defects through high-temperature operation, power cycling and load testing. Longer aging duration does not equal better screening effect; the key is to match aging conditions with product failure mechanisms and verify screening effectiveness with data.
Case: Modules adopting room-temperature power-on aging still suffered intermittent restart issues at customer sites. After adding a high-temperature aging stage and monitoring current drift before and after aging, abnormal batches of power solder joints and core components were identified and optimized. The aging process was upgraded from simple timing operation to data-driven monitoring with trend analysis and abnormal alarm functions.
8. Packaging & Shipping: Avoid final-stage quality risks despite qualified manufacturing quality
Packaging design comprehensively considers ESD protection, moisture resistance, dust prevention, optical end-face protection, mechanical shock resistance, label management and batch isolation. Optical end-face cleanliness is critical for optical modules, requiring end-face inspection and dust cap confirmation before packaging. High-value products also need verification of drop resistance, vibration resistance and temperature/humidity transportation adaptability.
Label information must be consistent with MES data, including model number, serial number, version, production date, customer code and compliance marks. Mixed batches, wrong labels and missing accessories are non-technical but frequent causes of customer complaints.
9. MES Traceability: Realize full-process closed-loop management instead of simple scanning records
A functional MES system can answer five core questions for each PCB: Which batch of materials is used? Which equipment and programs are adopted for processing? Who operated it and at what time? What are the detection and test results? What rework and release records exist?
MES is embedded with error-proof logic: prohibiting feeding of wrong materials, blocking production with mismatched program versions, stopping process flow for unqualified pre-process products, and automatically locking products with excessive rework times. This upgrades MES from a simple data recording system to a real-time process control system.
10. From NPI to Mass Production Ramp-up: Four core forms focused by technical directors
1. Risk list: covering design, material, process, test and supply chain risks;
2. Yield ramp-up sheet: monitoring first-pass yield and major defects of each process station;
3. Man-hour & capacity sheet: confirming bottleneck processes and production tact time;
4. Change management list: verifying all ECN changes, material substitutions, program updates and fixture modifications.
Mass production is not a simple amplification of prototyping quantity, but the standardization of empirical operations and stabilization of accidental success. Excellent factories do not eliminate all risks, but achieve rapid positioning, closed-loop handling and recurrence prevention for all abnormal problems.
11. Pilot Production Review: Mandatory problem closure before mass production release
Pilot production review should not only focus on final yield data. It comprehensively assesses design defects, material problems, process anomalies, test failures, capacity bottlenecks and quality risks. Each problem is assigned with a responsible person, deadline, verification batch and closed-loop evidence. Temporary improvement measures are clearly defined with valid periods, avoiding long-term application as formal mass production standards.
Quantified mass production access thresholds are recommended, including key material completion rate, SMT first-pass yield, ICT/FCT first-pass yield, test system GR&R qualification, aging defect rate, key defect closure rate and document completeness rate. All unclosed high-risk items require cross-department approval before mass production ramp-up.
Case: A project with qualified prototype functions had a single-unit FCT test duration exceeding 20 minutes, which would result in only 50% of the planned post-stage capacity. Before mass production, the team optimized software processes and adopted parallel testing schemes, shortening the tact time to 8 minutes and avoiding massive WIP accumulation.
12. Change Management: Minor mass-production changes may trigger major risks
Optical module products iterate rapidly, with frequent ECN updates, material substitutions, firmware upgrades, and adjustments to stencils, reflow temperature and test thresholds. The core of change management is judging the full impact scope rather than simple form filling.
Material substitution requires full comparison of packaging, soldering performance, thermal characteristics, electrical parameters, optical performance and reliability. Program changes need to ensure historical data comparability. Stencil and reflow parameter modifications require first-piece verification and small-batch trial production. Test threshold adjustments must be approved by R&D and quality departments, prohibiting arbitrary relaxation for yield improvement.
MES must record the exact version combination of materials, programs and firmware for each product serial number. Otherwise, customer complaints cannot be accurately traced to the corresponding firmware version, material batch and process parameters.
13. Equipment & Fixture Maintenance: Yield fluctuations are cumulative rather than sudden
Preventive maintenance is linked with product risks and equipment usage frequency. Test fixtures are maintained based on plug-in times and key contact impedance rather than fixed cycles. Stencils are managed with usage count records. Reflow ovens regularly undergo temperature uniformity and chain speed calibration.
Equipment health indicators are established based on operational data, including material rejection rate, SPI offset trend, AOI false alarm rate, test retest rate and fixture failure rate. Abnormal data trends predict potential failures earlier than equipment shutdown alarms.
14. Personnel & Document Management: The ultimate guarantee of mass production stability
Advanced processes cannot achieve stable output with unenforceable work instructions. Standard documents must include clear pictures, key parameters, boundary reference samples, abnormal handling schemes and escalation procedures. Operators need to master both operational steps and the criticality of each process.
Personnel training is assessed by theoretical tests, practical operations and abnormal handling capabilities instead of simple signature confirmation. Clear response plans are formulated for line switching, material replacement, equipment alarms, first-piece failure and continuous defects. Engineers conduct regular on-site inspections to avoid disconnection between documents and actual production.
Standardization in mature factories is not rigid restriction, but solidification of verified optimal processes, while allowing approved small-scale trials for continuous process improvement.
15. Cost & Delivery Control: Avoid single focus on PCB processing fees
The actual manufacturing cost of optical module PCBA covers material loss, line switching cost, program development, fixture investment, test equipment occupation, aging energy consumption, rework, scrap and quality risk cost. For small-batch multi-model production, line switching and engineering costs account for a high proportion; for mass production, tact time optimization, yield improvement and automation are the core cost control points.
Supplier evaluation should not only compare SMT unit prices, but also assess resource sufficiency, key equipment backup capacity, abnormal response speed, traceability depth and capacity expansion plans. Low-quote suppliers with insufficient test capabilities will lead to higher hidden costs such as rush processing, rework and delivery delay.
Manufacturing teams communicate with customers based on data, transparently presenting cost changes brought by yield improvement, tact time optimization and design iteration, so as to build long-term cooperative relationships rather than simple price competition.
16. Executable Mass Production Checklist
Pre-production: Verify BOM, ECN, program, stencil, fixture, material status and personnel qualification;First-piece inspection: Confirm component polarity, placement position, solder joint quality, dimensional accuracy and program version;SMT process: Monitor solder paste status, SPI data, placement quality, reflow temperature and AOI/X-Ray results;Test process: Confirm equipment calibration, golden sample status, optical fiber cleanliness, test thresholds and data upload;Aging process: Monitor temperature, power supply stability, aging duration and abnormal alarms;Packaging process: Verify ESD/moisture protection, optical end-face cleanliness, label accuracy and quantity consistency.
Each inspection item is assigned with a responsible position and recording standard. Management spot checks adopt reverse traceability via serial numbers rather than simple document inspection. Complete and rapid data traceability represents a sound operating system; temporary data collation by multiple departments indicates superficial traceability management.
Technical Note: Balance yield, tact time and maintainability
Successful high-speed optical module prototyping does not equal mass production feasibility. Many qualified prototypes fail mass production ramp-up due to excessive test duration, unstable optical fiber cleaning, fluctuating fixture contact performance and slow program downloading. Before mass production approval, parallel test evaluation, fixture life verification, consistency confirmation and test false failure analysis must be completed. Only with matched front and back process capabilities can SMT capacity be converted into actual deliverable capacity.
Factory Practice Note: MES focuses on error prevention beyond data statistics
The basic value of MES is product traceability, while its core value is process error prevention. It realizes multi-dimensional interlock control: prohibiting feeding of wrong materials, blocking production with mismatched stencil/program/work order versions, preventing unqualified SMT boards from entering subsequent processes, automatically locking products with excessive key component rework times, and disabling production with uncalibrated test programs or expired fixtures.
For 800G and 1.6T high-speed products, all data of key chips, optical devices, PCB, solder paste, stencils, ICT, FCT and aging tests are bound to single-board serial numbers. For customer abnormal feedback, manufacturers can confirm not only the production date, but also the material batch, processing equipment, real-time process parameters, rework records and batch defect trends. This is the core digital capability of high-speed optical module manufacturing factories.
