Drone VTX PCBA — Multi-Band FPV Video Transmitter

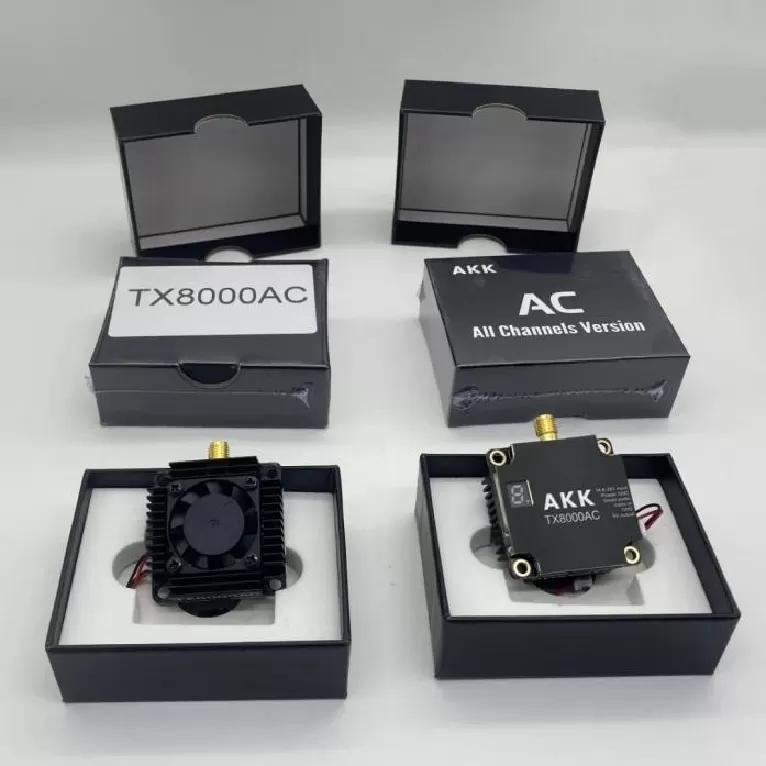

5.8GHz · 1.2GHz · 2.4GHz · 3.3GHz · 1.5GHz · 1.6GHz | 1W–8W Output | AKK Alpha 10/16 · FX2-Dominator · TX8000AC · Custom

Product Overview

FPV video transmitters (VTX) are the critical RF link between the drone and the pilot's goggles or ground station. Superb Automation provides PCBA assembly for VTX modules across all common FPV frequency bands — from the popular 5.8 GHz band (up to 8W output) to long-range 1.2/1.3 GHz, mid-range 2.4 GHz, and specialty 3.3 GHz and 1.5/1.6 GHz bands. Our RF PCB assembly process addresses the unique challenges of high-power RF design: thermal management, impedance control, EMI shielding, and SMA connector mechanical integrity.

5W RF Output Power
extends reliable video link range with sufficient link margin for long-range FPV operation; maintains stable transmission with reduced multipath fading.

Multi-Band Frequency Support

operates across the 5.8 GHz ISM band with 96 selectable channels, enabling frequency agility to avoid in-band interference from co-located transmitters.

Low-Latency HD Video Transmission

30 fps at 640 resolution with minimal encode-to-decode latency, preserving real-time pilot feedback critical for proximity and racing flight.

Compact Lightweight Enclosure

optimized power-to-weight ratio for installation on 3–7 inch class FPV airframes without compromising center-of-gravity or payload budget.

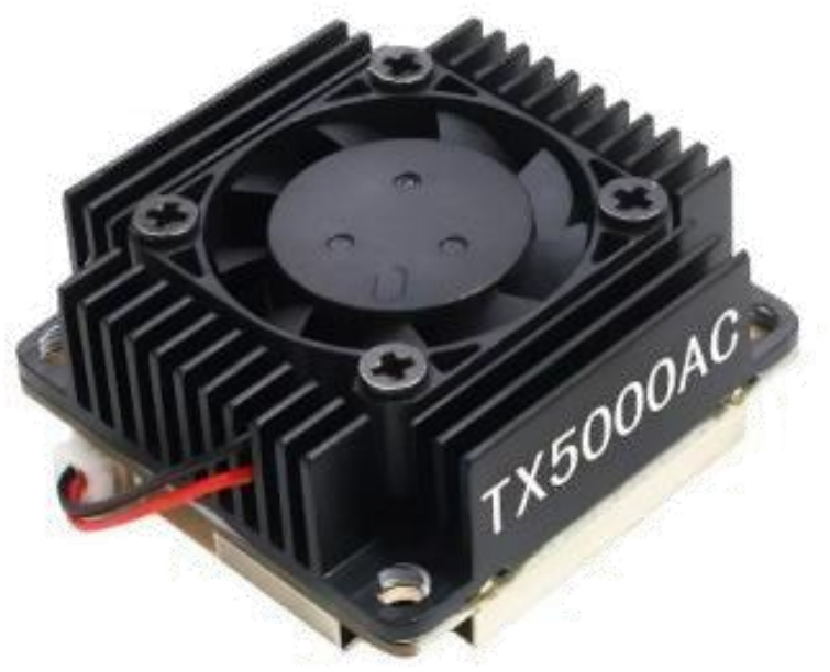

Active Thermal Management

integrated forced-air cooling maintains junction temperature within safe operating limits during sustained full-power transmission, preventing thermal throttling and output power degradation over extended flight sessions.

Covered Product Variants

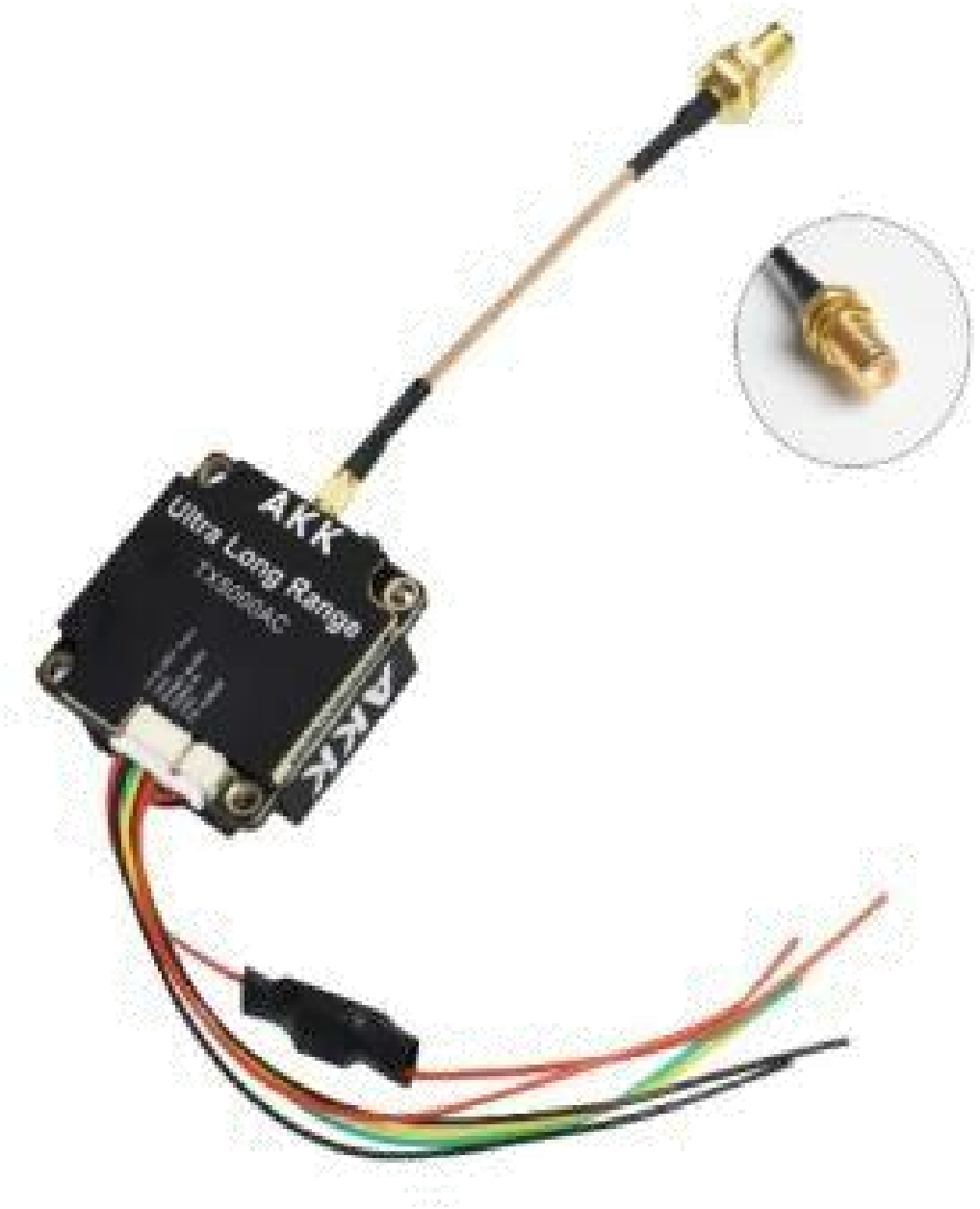

5.8 GHz Band — Mainstream FPV

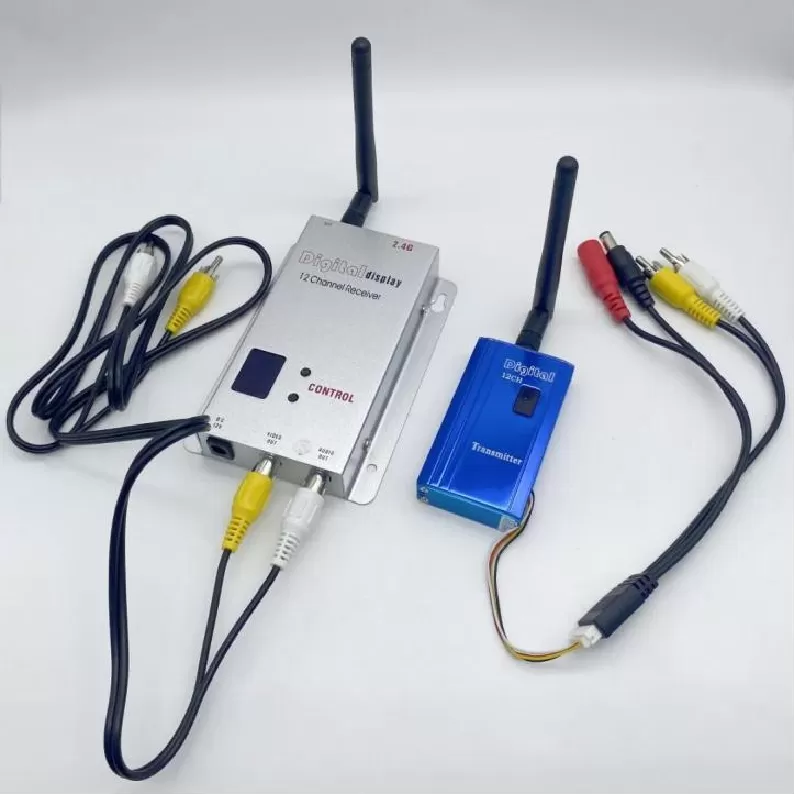

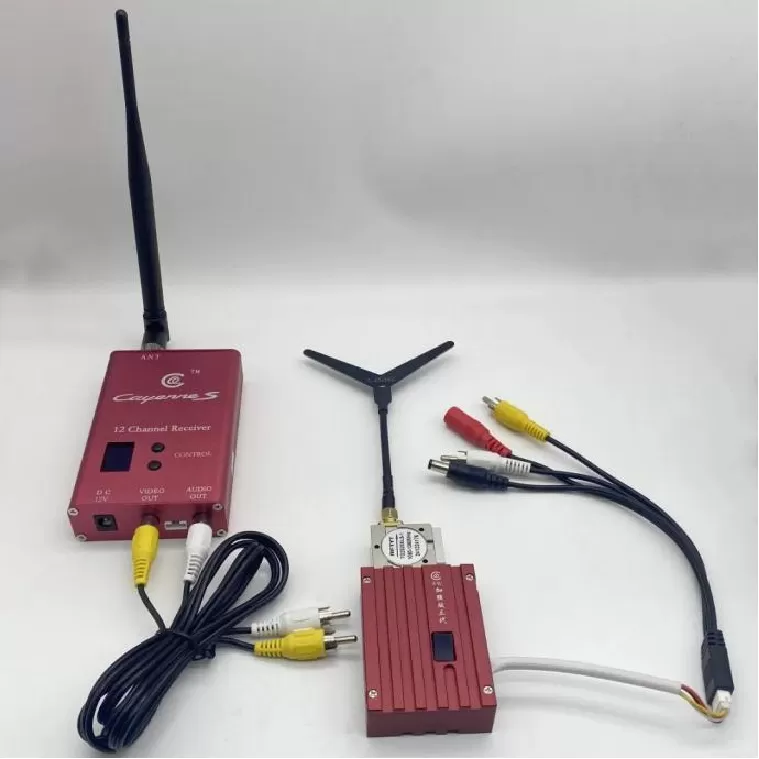

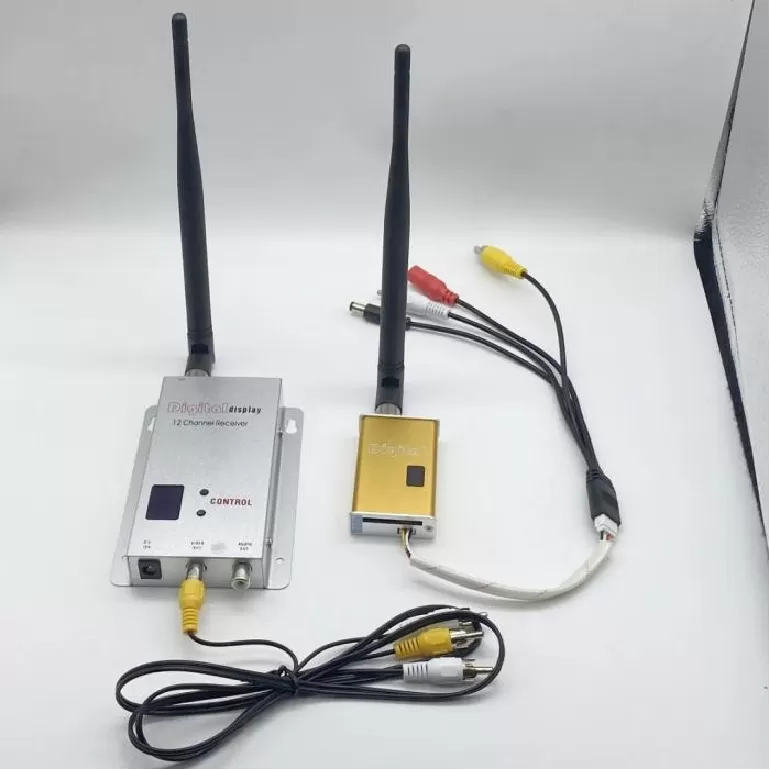

Other Frequency Bands — Long-Range & Specialty

PCBA Manufacturing Challenges

1. RF Power Amplifier Soldering & Thermal Management

High-power VTX modules (5W and above) use RF power amplifier ICs in QFN or DFN packages with large exposed thermal pads. At 8W–16W output, the PA generates substantial heat that must be conducted away through the PCB thermal pad and into a heatsink or fan-cooled enclosure. Superb Automation uses vacuum reflow with nitrogen to achieve < 15% void rate on the PA thermal pad, confirmed by X-ray inspection. For 8W+ designs, we recommend 2 oz copper on outer layers with a dense thermal via array under the PA pad, and offer heatsink attachment as a post-SMT assembly step.

2. RF Impedance-Controlled PCB

The VTX output path — from the PA output pin through the matching network to the SMA connector — must maintain a controlled 50Ω impedance across the operating frequency. Even small variations in trace width, dielectric thickness, or solder mask registration cause impedance mismatch that reduces output power and increases reflected energy. We use RF-grade laminates (Rogers RO4350B, Isola I-Tera MT40, or equivalent) for the RF section, with TDR impedance coupon verification on every panel.

3. EMI Shielding Can Attachment

VTX modules typically use metal shielding cans over the RF section to contain EMI and prevent interference with other drone electronics (GPS, receiver, flight controller). The shield must be soldered to the PCB ground plane with continuous contact around the entire perimeter — gaps create slot antennas that radiate noise. Superb Automation uses reflow-solderable shield clips or direct shield-to-board soldering with paste stencil apertures sized for adequate solder volume on the shield land pattern.

4. SMA Connector Mechanical Integrity

The SMA edge-mount or through-hole connector is subjected to repeated antenna attachment/removal and vibration during flight. A weak solder joint leads to intermittent RF output or connector detachment. We use through-hole SMA connectors with large ground pad anchors where the board layout permits, and apply additional solder fillet on the connector body for mechanical reinforcement. Pull-force testing verifies connector integrity on each assembled unit.

5. RF Output Power Verification

Each assembled VTX is tested for RF output power on the specified frequency band using a spectrum analyzer or RF power meter. We verify: output power within ±1 dB of rated value, frequency accuracy, and absence of spurious emissions above regulatory limits. For multi-channel VTX models, spot-checks are performed across the channel range.

Superb Automation Assembly Capabilities — VTX

Ordering Options

Send your VTX Gerber, BOM, and target frequency/power specifications to pcba@superb-tech.com for a free DFM review and RF assembly quotation.
