Rigid-Flex / Flex PCB Fabrication

Rigid-flex PCB manufacturing — 14 layers · 10 rigid + 4 flex · 2+2 split · 2.2 mm · Panasonic · 3 mil line · Lead-free HASL · Build-to-print from Gerber files
quote now

Product Specifications

Rigid-Flex / Flex PCB Fabrication

Rigid-flex PCB manufacturing — 14 layers · 10 rigid + 4 flex · 2+2 split · 2.2 mm · Panasonic · 3 mil line · Lead-free HASL · Build-to-print from Gerber files

Capabilities

Product typeRigid-flex PCB (软硬结合板)
Total layer count14 layers
Rigid section layers10 layers
Flex section layers4 layers

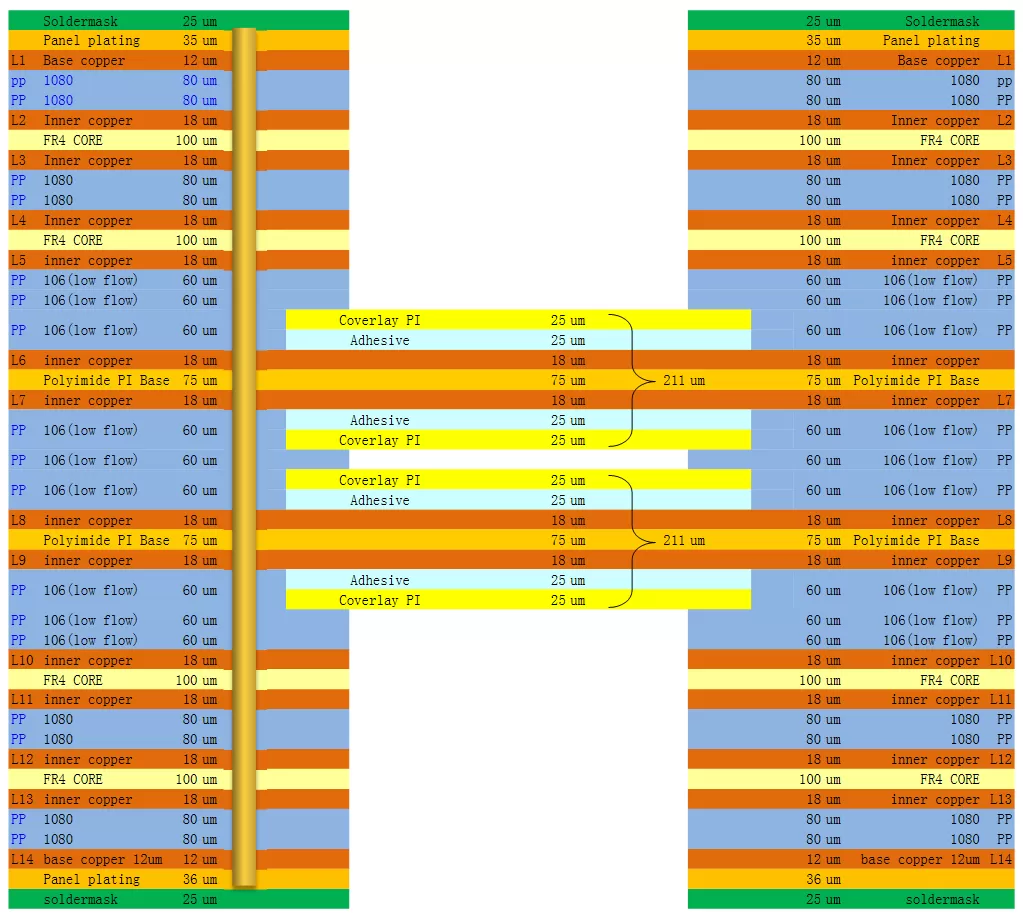

Flex stack-up2+2 split design — two independent 2-layer flex sub-stacks
Total board thickness2.2 mm
Flex thickness0.2 mm (per 2-layer sub-stack)
Rigid materialPanasonic (松下) — high-Tg FR-4
Flex materialPanasonic (松下) — polyimide
Minimum hole size0.2 mm (mechanical drill)
Minimum line width / spacing3 mil / 3 mil (0.076 mm / 0.076 mm)
Surface finishLead-free HASL (无铅喷锡)
Solder mask colorGreen (绿色)
Max panel size700 mm × 480 mm
Impedance control± 5% differential (TDR verified per panel)

Process Highlights

2+2 Split Flex Stack-Up

  • Two independent 2-layer flex sub-stacks — flexible routing on four flex layers

  • Each 2-layer sub-stack: 0.2 mm polyimide core with rolled-annealed copper

  • Sub-stacks bonded into rigid section during single-press lamination

  • Reduced bend radius vs. a single 4-layer flex — better dynamic flex durability

Panasonic Material System

  • Rigid: Panasonic high-Tg FR-4 — Tg > 170 °C, low Z-axis CTE

  • Flex: Panasonic polyimide film — high elongation, flex-cycle endurance > 100k cycles

  • Single-supplier material stack — matched CTE between rigid and flex zones

  • No-mix adhesive system — consistent bond strength across rigid-flex boundary

Fine-Line 3 mil / 3 mil

  • 0.076 mm line and space — Laser Direct Imaging (LDI) for both rigid and flex layers

  • Acid-etch process tuned for thin copper — 3 mil traces on ⅓ oz base copper

  • AOI at 2 μm resolution — 100% trace inspection on all 14 layers

Flex-to-Rigid Transition

  • Coverlay opening at flex bend zone — polyimide coverlay or photo-imageable coverlay

  • Stiffener attachment at rigid-flex boundary — FR-4 or polyimide stiffener

  • No-flow prepreg at transition — prevents resin bleed into flex area

  • 100% electrical test — flying probe, including flex-tail continuity

Applications

  • Aerospace — avionics interconnect, satellite hinge harness, phased-array fold

  • Medical — endoscopy imaging head, implantable device flex interconnect

  • Automotive — ADAS camera fold, LiDAR rotary coupling, EV BMS flex harness

  • Industrial — robotic joint flex, foldable HMI, test-socket flex interconnect

  • Consumer — foldable smartphone hinge PCB, wearable flex band

Why Rigid-Flex

  • 2+2 split flex replaces cables and connectors — fewer assembly steps, fewer failure points

  • Panasonic single-supplier stack — matched material behavior across thermal cycling

  • 3 mil fine-line on flex — high-density routing in tight bend zones

  • 3D packaging — folds into compact enclosures, eliminates rigid-to-rigid interconnects

  • Lead-free HASL — RoHS compliant, compatible with lead-free assembly processes
